Enter the Dragon with RED’s latest Epic camera model, starring the 6K ‘Dragon’ sensor. This new sensor is a 19megapixel, 30.7x 15.8mm Bayer pattern 16-bit CMOS sensor, which will impress you by it’s impressive ColorDepth and Dynamic Range. Capable of capturing 1 to 82 fps at full resolution and goes up to 400fps in 2Kmode. Our camera can be configured with a Pro I/O Module for professional audio and video I/O connectors.
- 19 Megapixel DRAGON™ Sensor
- 6K RAW (2:1, 2.4:1), 5K RAW (Full Frame, 2:1, 2.4:1, Anamorphic 2:1)
- 6144 x 3160 pixel Resolution
- Native 800 ASA sensitivity
- 16.5 stops of latitude
- Raw recording to SSD digital media
- Record 6K, 5K, 4.5K, 4K, 3K, 2K, 1080P or 720P
- Record 1-100fps in 6K
- Record 1-120fps 5K, 4.5K
- Record 1-150fps in 4K
- Record 1-200fps in 3K
- Record 1-300fps in 2K
- Records 2 channel, uncompressed, 24 bit, 48KHz audio
Epic-M Dragon body with PL mount, Mini-Mag SSD module,Standard, Low Light or Skin Tone OLPF, Berkey Top Plate,Berkey Long Baseplate w/ 15mm LWS, Wooden SideCheeseplates, RED Touch 5" LCD w/ 2-cables, +1 AdapterModule, REDMote w/ USB to P-Tap charger, 15mm or 19mmbridgeplate, top handle,XLR audio adapter box, WoodenQuick Back with A/B plate, AC power adapter, timecode synccable, 1-240GB RED Mini-Mag SSD, RED Station RED Mini-Magreader, manuals & case.
Sensor Mode | Resolution |
---|---|
6K FF | 6144 x 3160 pixels |
Bundling high performance raw video recording in a compact camera bodyCinema DSMC2 Brain with Gemini 5K S35 Sensor is part of the 2018 unifi and is designed to be built up the way you want, to tell your story in almostSince the DSMC2 form factor is standard, accessories from RED and othercan be easily attached to accessorize your camera. Even though the GEMIphotosites than its HELIUM and MONSTRO brethren, it has a cool trick upadvanced circuitry designed for the aerospace industry, the GEMINI can swsensitivities. Practically speaking, it can operate in both normal and dimly without prematurely blown highlights or excessive noise, respectively. Neaoptions are available for the DSMC2 system. While this camera requires aavailable lens mount, DSMC lens mounts themselves are offered in differecompatibility with a wide array of lens systems.
- 5K GEMINI S35 Sensor
- REDCODE RAW
- Apple ProRes and Avid DNx Formats
- DSMC2 Form Factor
- Color Management
Sensor Type | Effective Pixels |
---|---|
GEMINI 15.4 Megapixel Dual Sensitivity CMOS | 5120 × 3000 |
Sensor Dimensions | 30.72 mm x 18.0 mm Diagonal: 35.61 mm |
RED EPIC-W carries on the legacy of the original RED EPIC, which beca workhorse upon its release in 2010. Offered with two sensor options, the W BRAIN enables creative fl exibility in any situation.
EPIC-W leverages lightning fast data rates up to 275 MB/s and records RE well as proxy 4K Apple ProRes or Avid DNxHR—simultaneously.
Joining the DSMC2 lineup, EPIC -W benefi ts from the advanced modularthe RED ecosystem and offers cable-free peripherals, an integrated mountcontrol, and compatibility with a growing supply of modules and accessoriinterchangeable OLPFs and lens mounts, EPIC -W provides an all new perssensor coverage and support for your arsenal of S35 glass.

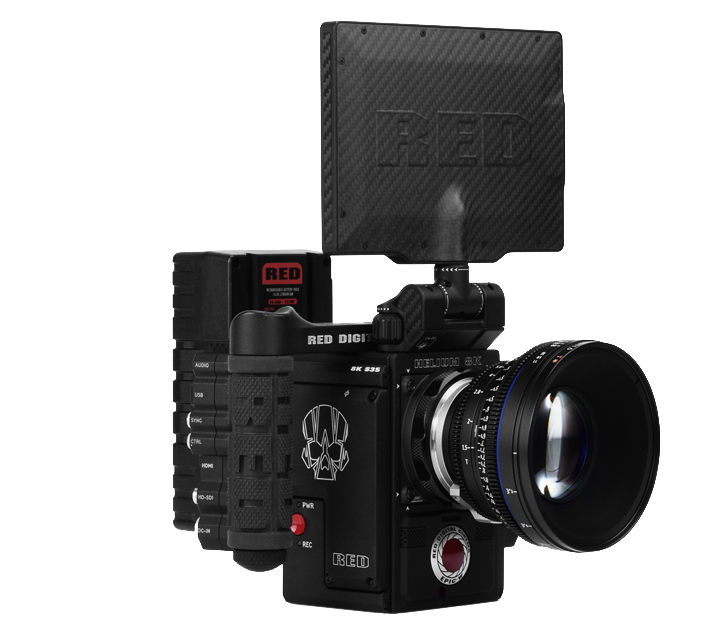

- HELIUM 8K S35
- The ESR-T01-A1 package uses the Basic TILTA I/O Module.
- CNC-milled from a lightweight and durable high-impact aluminum 7075 alloy.
- Hard-anodized surface design
- Hard-anodized surface design
- The whole cage is lined with built-in electronics
- Camera Run/Stop Button on Handle
- Handle Power Connection Module
- 14.8V 2-Pin LEMO output
Sensor Type | HELIUM 35.4 Megapixel CMOS |
---|---|
EFFECTIVE PIXELS | 29.90 mm x 15.77 mm (Diagonal: 33.80 mm) |
DYNAMIC RANGE | 16.5+ stops |
This new camera and sensor combination, WEAPON 8K VV, offers Full Fracaptures 8K full format motion at up to 60 fps, produces ultra-detailed 35.and delivers incredibly fast data speeds of up to 300 MB/s. Like all of RED’cameras, WEAPON shoots simultaneous REDCODE RAW and Apple ProRDNxHD/HR recording and adheres to RED’s dedication to OBSOLESCENC core operating principle that allows current RED owners to upgrade their innovations are unveiled as well as move between camera systems withoupurchase all new gear.
The DSMC2 form factor is our smallest and lightest BRAIN ever. With feafree peripherals, integrated media bay, wireless control, and more—WEAPpowerful and intuitive camera to date. It is also compatible with a growingand accessories—from RED and other Third-Party manufacturers.
RED’s premier sensor provides cinematic Full Frame lens coverage and delivers 17+ stops of dynamic range.
- 35.4 Megapixel CMOS Sensor
- 40.96 mm x 21.60 mm (Diag: 46.31 mm)
WEAPON delivers stunning resolution and image quality—creating clean and organic images that bring your footage to life. RED has taken the next step in exceeding the beauty offered by fi lm – up to 17x more resolution than HD—and over 4x more than 4K. A WEAPON BRAIN is capable of data write speeds of 300 MB/s, can simultaneouin REDCODE RAW and Apple ProRes or Avid DNxHR/HD.
The DSMC2 form factor is our smallest and lightest BRAIN ever. With features like cable-free peripherals, integrated media bay, wireless control, and more—WEAPON powerful and intuitive camera to date. It is also compatible with a growing arsenal of modules and accessories—from RED and other Third-Party manufacturers. Tack on iOLPFs and lens mounts and WEAPON gives you the ultimate control over your footage.
Sensor Type | MONSTRO 35.4 Megapixel CMOS |
---|---|
SENSOR SIZE/strong> | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) Effective Pixels: 8192 × 4320 |
DYNAMIC RANGE | 17+ stops |

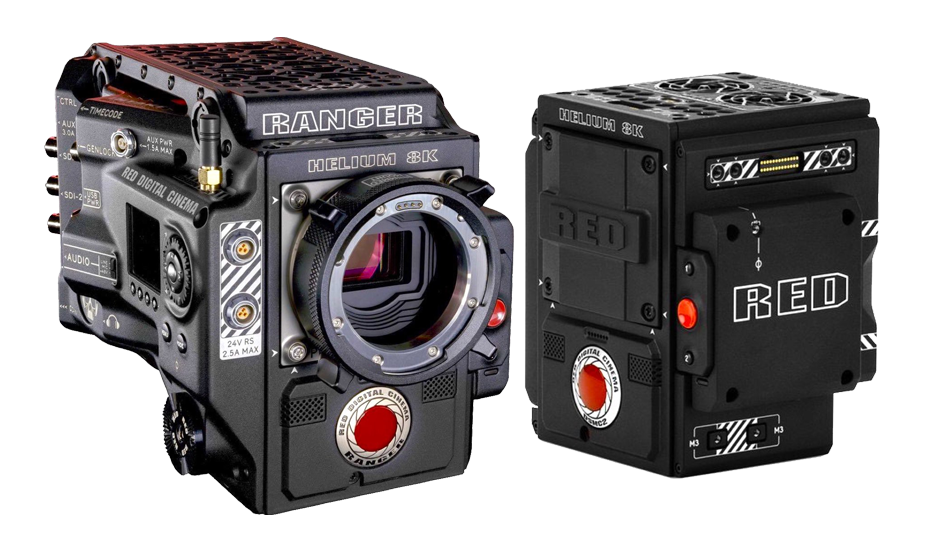

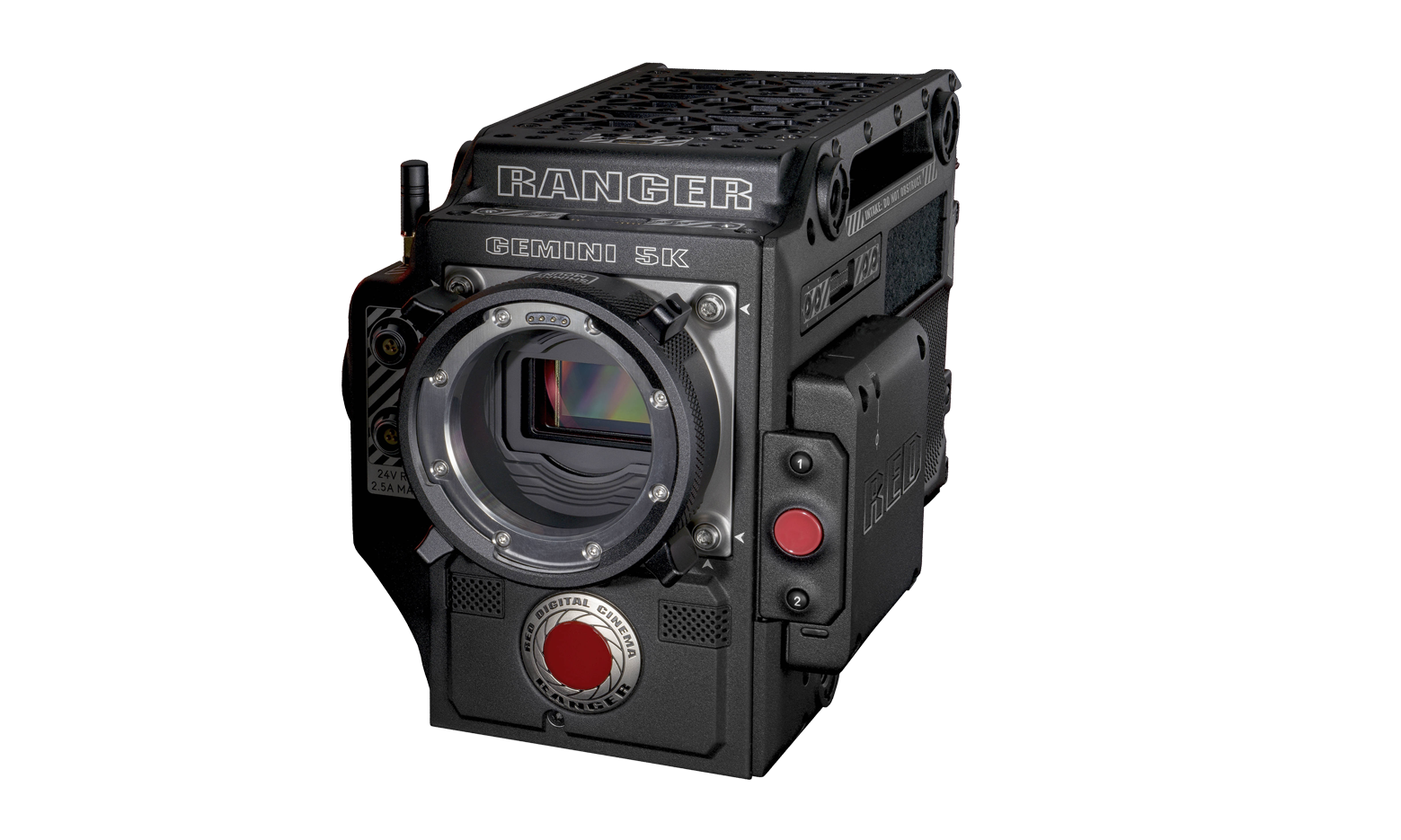

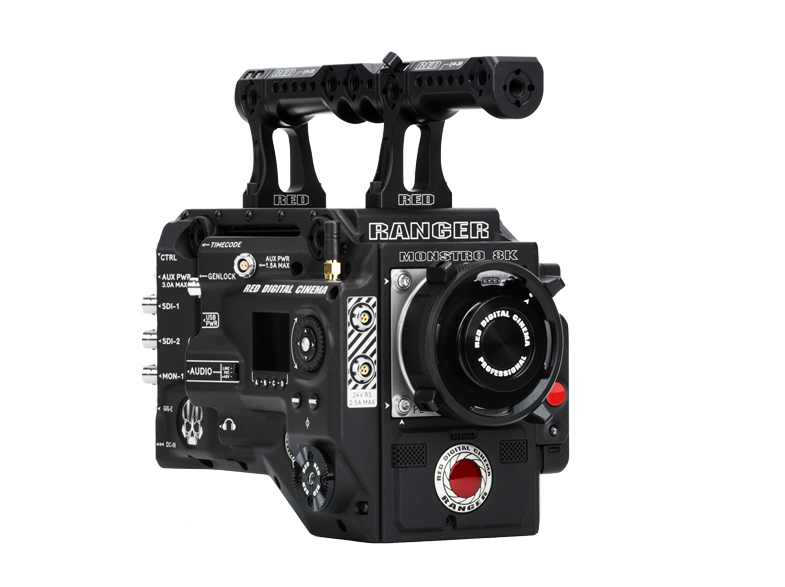

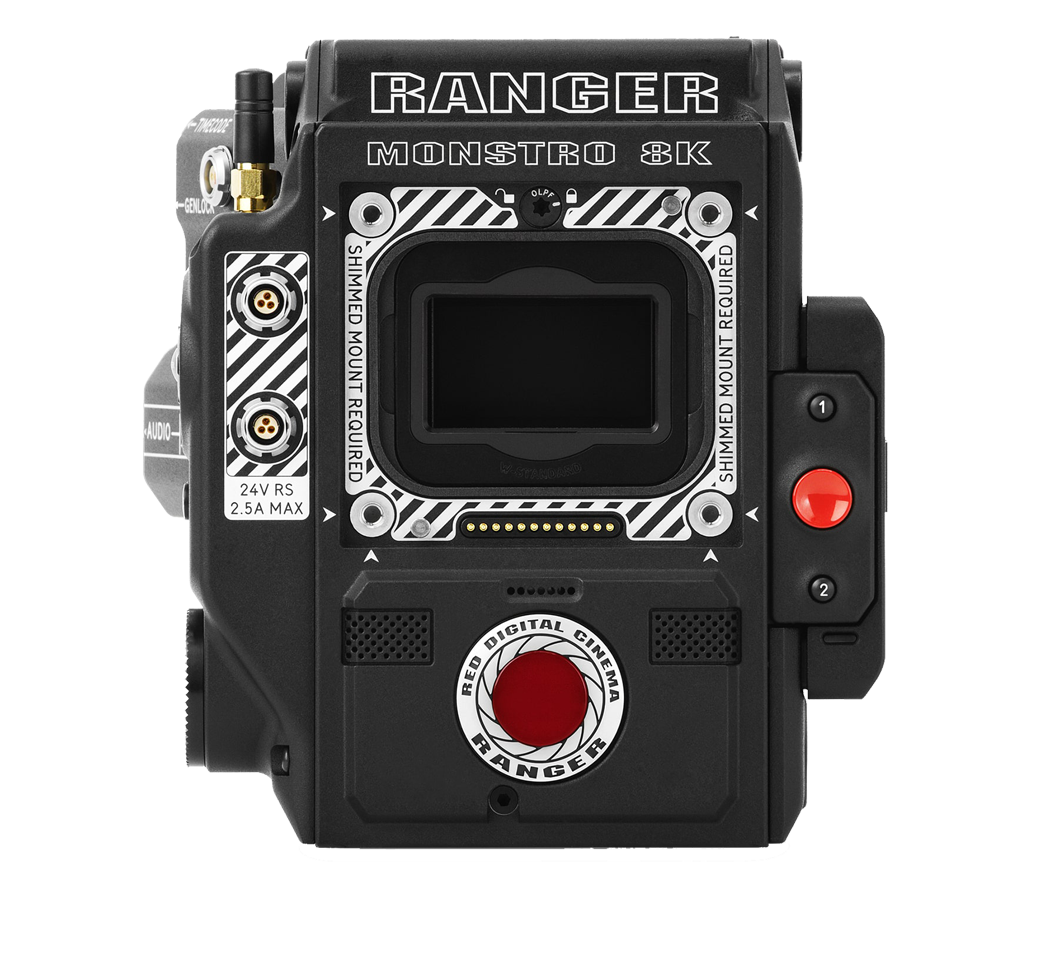

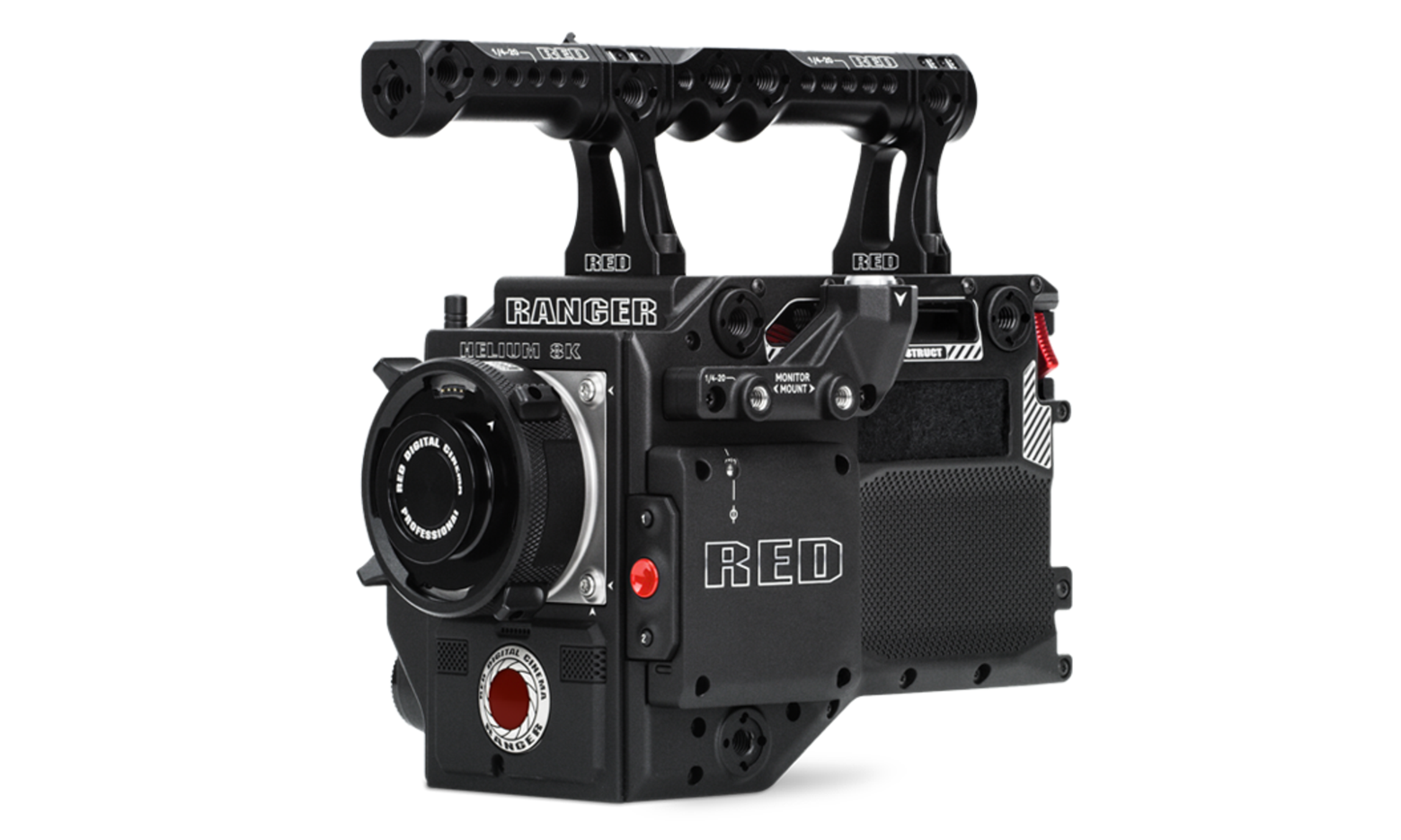

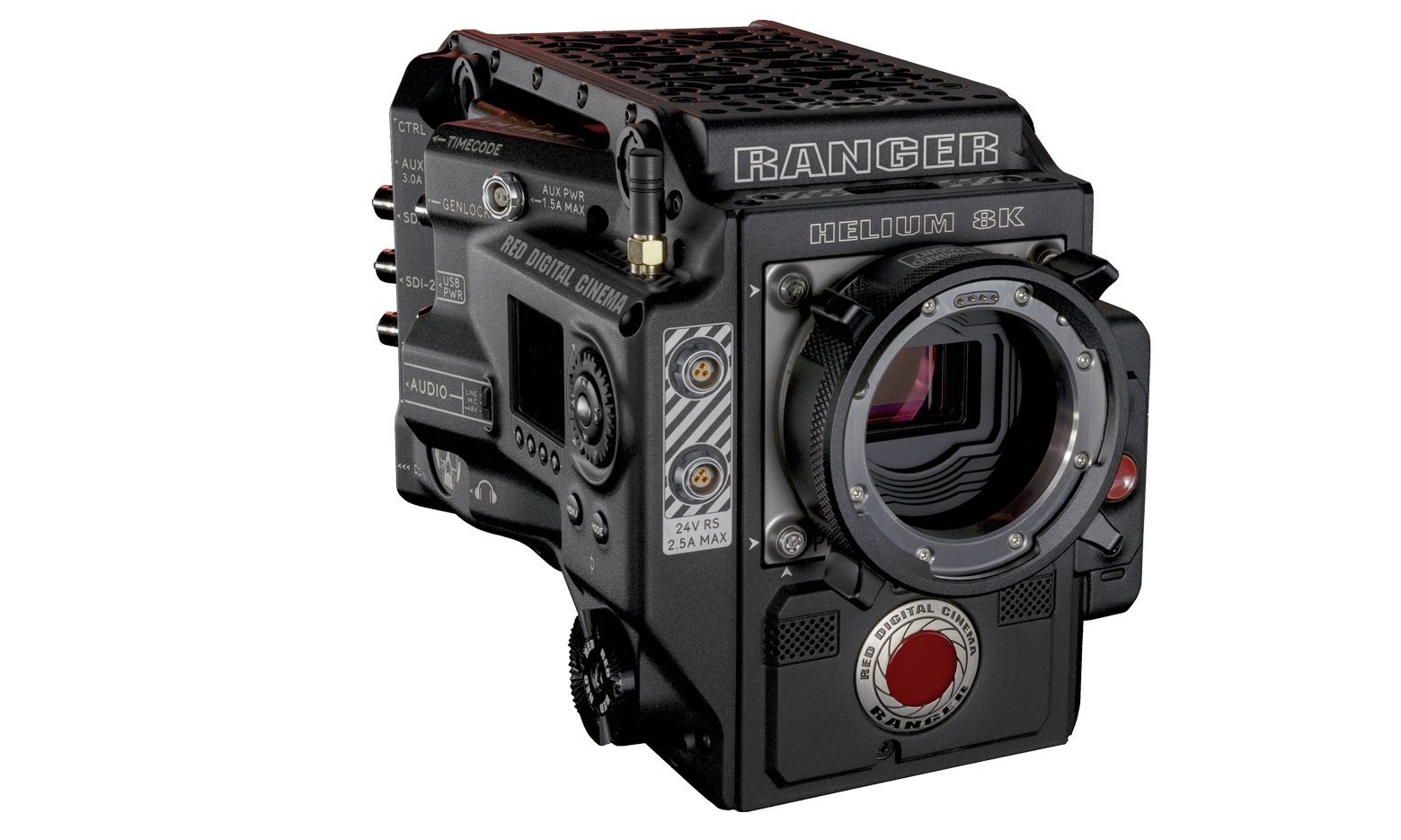

No matter which amazing sensor you choose, the RED RANGER camera system will feature the same compact, standardized camera body, weighing around 7.5 pounds (depending on whether the user chooses the V-Lock or Gold Mount variant). RANGER comes complete with a comprehensive I/O array to satisfy power-hungry studio configurations, and boasts a large fan for quiet, more efficient temperature management.
- Integrated I/O’s
- Three SDI outputs (two mirrored and one independent)
- Support for wider input voltage (11.5-32V)
- 24V & 12V power outs (two of each)
- 12V P-Tap port
- Integrated 5-pin XLR stereo audio input (line/mic/+48V selectable)
- Genlock, timecode, USB, and control
- Shimmed PL mount
- Large diameter fan provides improved thermal performance
- Available in V-Lock or Gold Mount variants

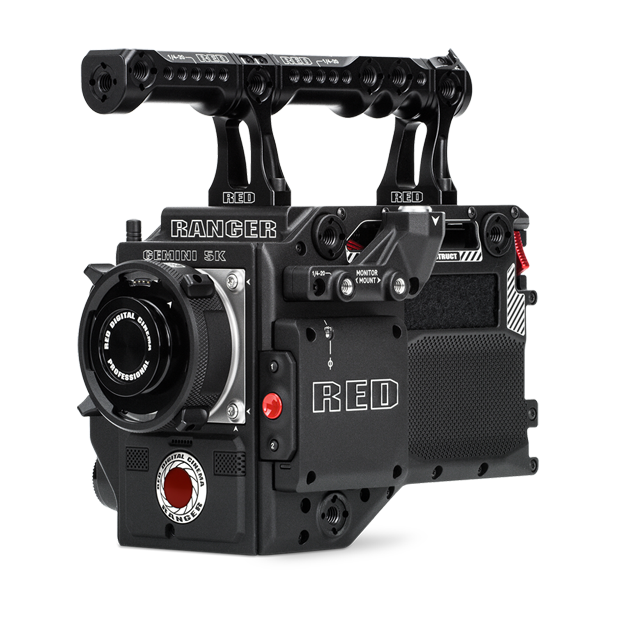

Sensor Type | Gemini 15.4 Megapixel Dual Sensitivity CMOS |
---|---|
Effective Pixels | 5120 x 3000 |
Sensor Type | HELIUM 35.4 Megapixel CMOS |
---|---|
Effective Pixels | 8192 × 4320 |
SENSOR SIZE | 29.90 mm × 15.77 mm (Diagonal: 33.80 mm) |
DYNAMIC RANGE | 16.5+ stops |
Sensor Type | MONSTRO 35.4 Megapixel CMOS |
---|---|
Effective Pixels | 8192 × 4320 |
SENSOR SIZE | 40.96 mm × 21.60 mm (Diagonal: 46.31 mm) |
DYNAMIC RANGE | 17+ stops |

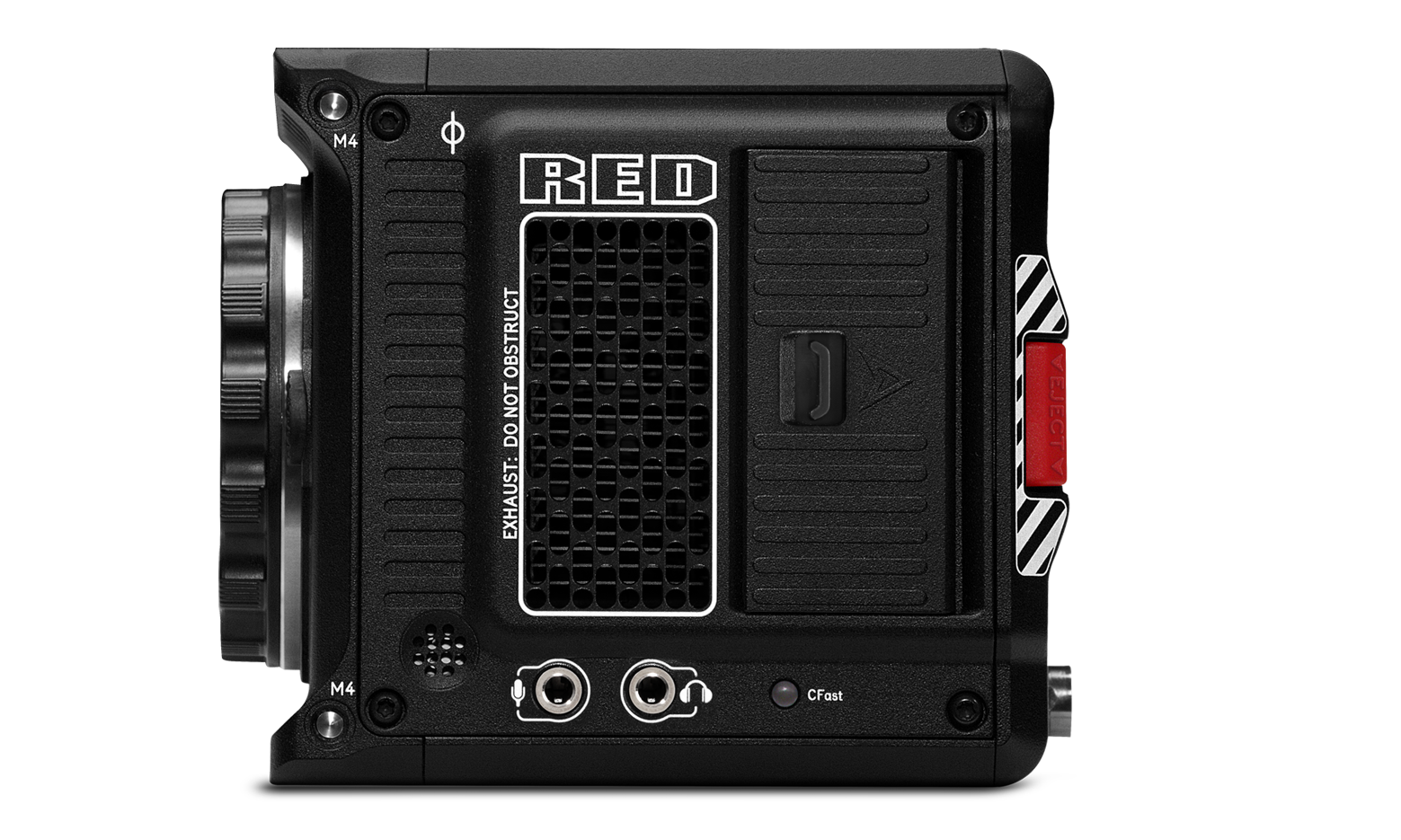

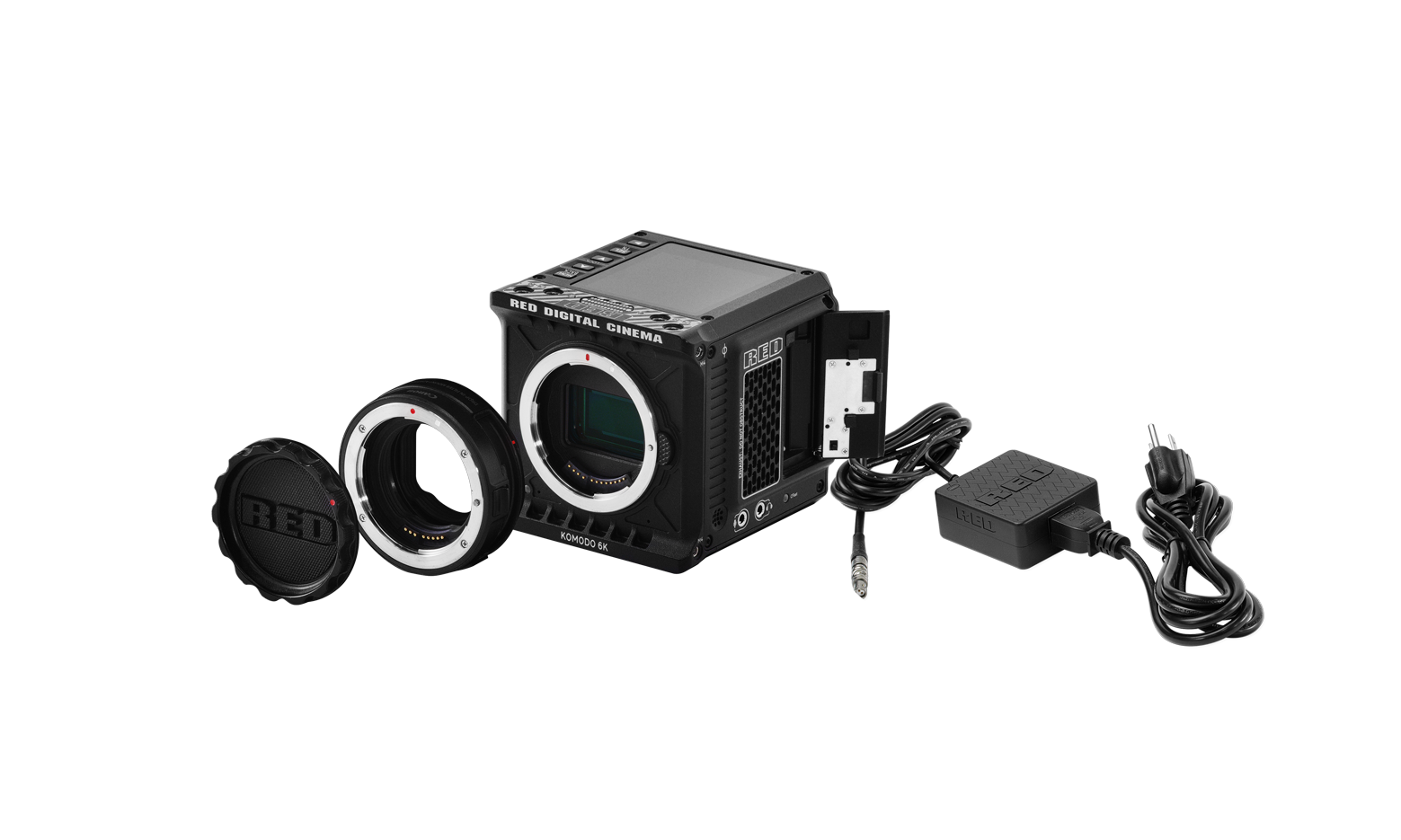

KOMODO® 6K is the latest breakthrough product in RED's long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera. It features RED's cinema grade image quality, color science and sensor technology into a portable form factor so users can take it anywhere and adapt it to any shooting scenario.
The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range and meets the RED standard of unmatched imagery without any creative or technical compromises. KOMODO also features a built-in Canon RF mount allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.
In-Camera Language Support: English, Simplified Chinese, Japanese, German, Spanish, French
NOTE: The KOMODO 6K has an adaptable RF lens mount. KOMODO requires a lens mount adapter, i.e. RF to EF, RF to PL, in order to shoot. Canon Mount Adapter EF-EOS R included with camera.
- KOMODO 6K Body
- AC Power Adaptor 45W
- Mini World Travel Adaptor Kit
- RED Logo Sticker
- KOMODO Information Card (incl. registration and support info)
- Integrated 5-pin XLR stereo audio input (line/mic/+48V selectable)
- Box with plastic / foam (standard minimalist markings)
- Shimmed PL mount
- Canon Mount Adapter EF-EOS R
- 1 Year Standard Warranty
Sensor Type | Komodo 19.9 MP super 35mm Global Shutter CMOS |
---|---|
Effective Pixels | 6144 x 3240 |

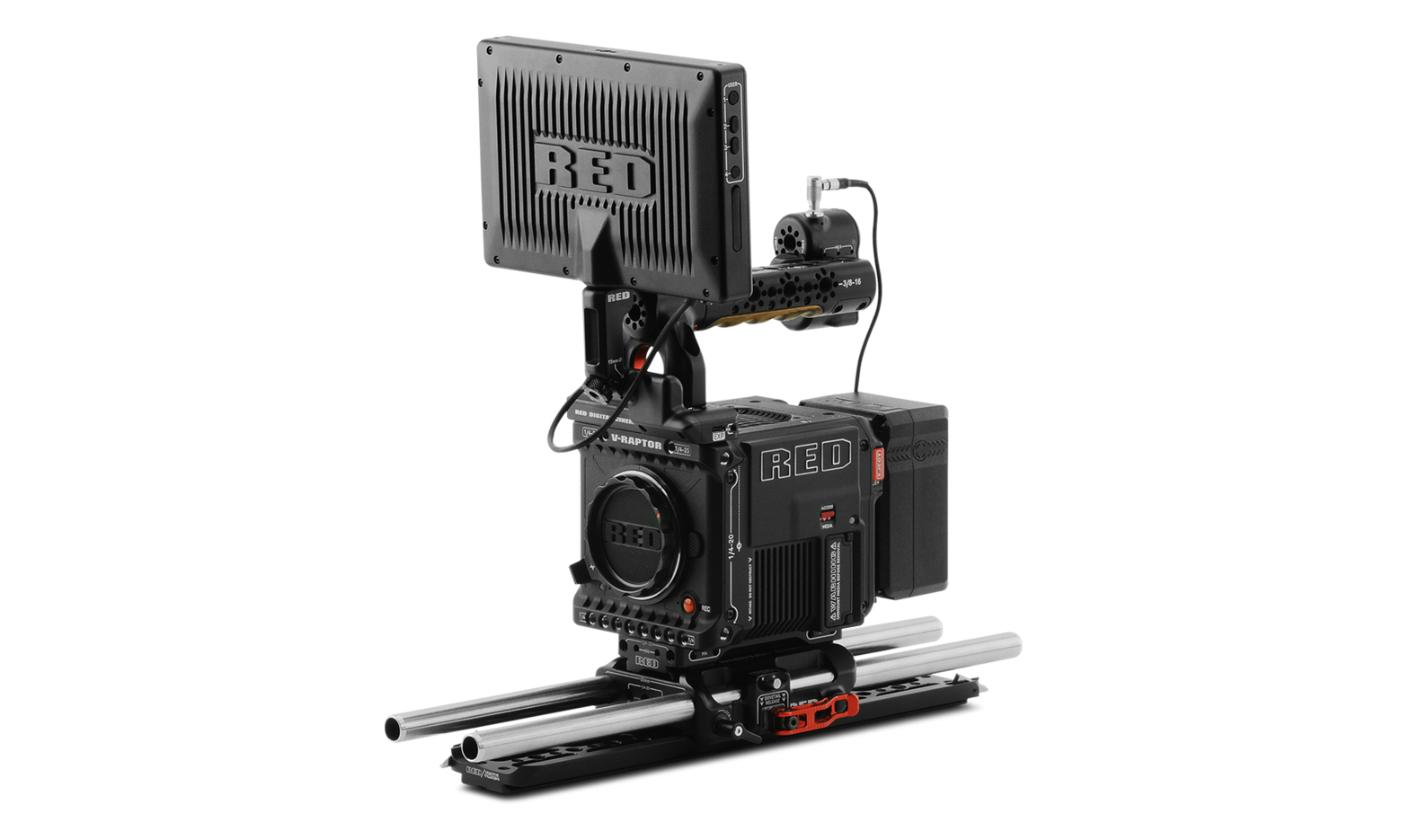

V-RAPTOR'" 8K VV is the most powerful and advanced RED° cinema camera ever. As the brand's new flagship system and sensor, as well as the first entrant into the new DSMC3TM
generation of cameras, V-RAPTOR stands alone at the forefront of digital image capture technology.
Featuring a groundbreaking multi-format 8K sensor- with the ability to shoot 8K large format or 6K S35, it unlocks the largest lens selection of any comparable camera on the
market and allows shooters the ability to always deliver at over 4K. The sensor also boasts the highest recorded dynamic range and cleanest shadow performance of any RED
camera. In addition, the V-RAPTOR sensor scan time is 2x faster than any previous RED camera and it allows users to capture up to 600 fps at 2K. V-RAPTOR will also continue to
feature RED's proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED's latest IPP2 workflow and color management.
Along with a new flagship sensor, the V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With 2 4K 12G-SDI outputs, XLR
audio and phantom power via adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.
- lx V-RAPTOR 8K Camera System
- lx DSMC3Tm RED° Touch 7" LCD
- 2x RED° PRO CFexpress 2TB
- lx RED° CFexpress Card Reader
- 2x REDVOLT° MICRO-V
- lx RED° Compact Dual V-Lock Charger
- lx V-RAPTORTM Top Handle
- lx V-RAPTORTM Expander Blade
Sensor Type | V-Raptor 8k VV 35.4 Megapixel CMOS |
---|---|
Effective Pixels | 8192 x 4320 |
