ARRI continues to expand its L-Series with the introduction of the L5-C 5" LED Fresnel . The key characteristic of any Fresnel is flood to spot capability and the L5-C offers an impressive beam angle adjustment of 14-50°.
The 100-0% dimmable L5-C is a "fully tunable" white light source, allowing you to match existing fixtures with color temperatures from 2,800K to 10,000K. The on-board controller allows full minus green to plus green adjustment as well as RGB+W color gamut color mixing with hue and saturation control, enabling matching of specific shades and skin tones. All functions can be controlled via DMX, an ideal feature for broadcast studios, while RDM permits monitoring of the light's status.
The L5-C produces the equivalent of a 450W tungsten light while drawing only 115W for a savings of up to 75% over traditional fixtures. And low draw and heat means lower HVAC costs in the studio and a quick return on investment. You can run about fifteen L5-Cs from a 20A, 120V outlet as opposed to three or four 500W tungsten fixtures. Power options include the L5-C's 90 - 250 VAC on-board power supply or 22-36 VDC battery options. This version of the L5-C has a silver/blue finish. A required power cable does not come with this light and needs to be purchased separately.
- 14 to 50 Degree Spot-to-Flood Adjustment
- Color Control from 2,800 to 10,000 K
- Full-Gamut Color Mixing
- Sliding Stirrup
- DMX and On-Board Control
- Upgradeable Via USB
- Long-Life LEDs
- Low 115W Electrical Draw
- 90-250 VAC, 50/60 Hz, 22-36 VDC
| Beam Angle | 14 to 50° |
|---|---|
| Color Temperature | 2800 to 10,000K ± 100K (with 200K Shift over Lifetime) |
| Color Accuracy Standard | CRI 95 at 3200K CRI 95 at 6600K |
| Dimming | Yes, 0 to 100% |
| Fixture Dimensions | Flood: 15.5 x 10.9 x 11.0" / 39.4 x 27.7 x 27.9 cm (Including Yoke) Spot: 15.5 x 10.9 x 14.7" / 39.4 x 27.7 x 37.3 cm (Including Yoke) |
| Fixture Weight | 11.2 lb / 5.08 kg |
Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors.

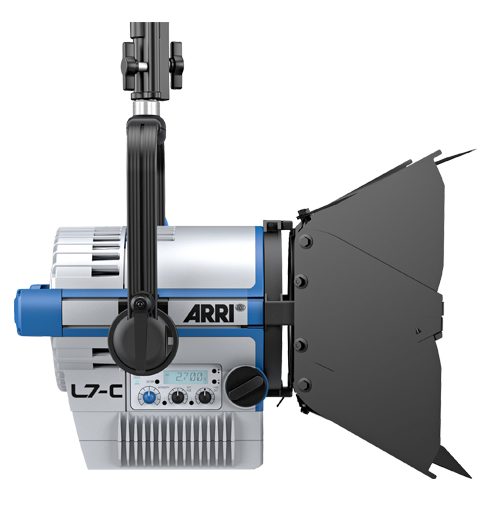

L7-Cs with the new LE2 are 25 % brighter than previous L7-C versions.
versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.
versions include the following base configuration: 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
| Series | L-Series |
|---|---|
| Model | L7-C |
| Optical System | Focusable Fresnel |
| Light Aperture / Lens Diameter in mm | 175 mm |
| Light Aperture / Lens Diameter in inch | 7" |
| Beam Angle | 15° to 50° Half Peak Angle |
Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors.

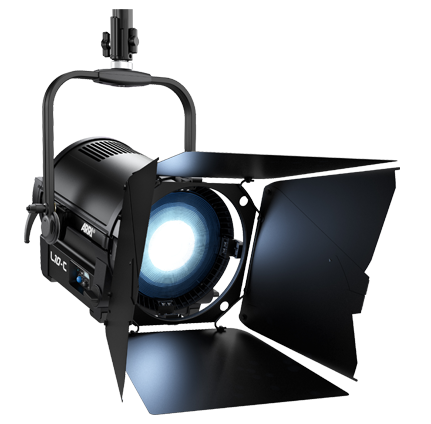

The L10 is the brightest and largest L-Series lamphead to date. Its substantial 10" Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.
Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2,800 K to 10,000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.
In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.
versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.
versions include the following base configuration: 28 mm Spigot (Junior Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
| Category | LED |
|---|---|
| Series | L-Series |
| Model | L10-C |
| Optical System | Focusable Fresnel |
| Light Aperture / Lens Diameter in mm | 274 mm |
| Light Aperture / Lens Diameter in inch | 10" |

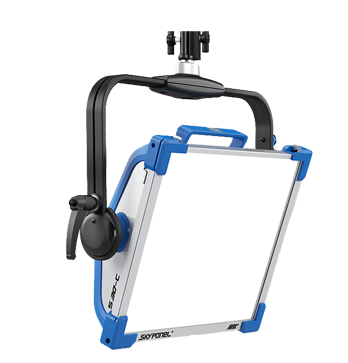

The SkyPanel Family. Different sizes for different applications.
SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 1 kW tungsten soft light or a 3 kW tungsten space light, the SkyPanel S30 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.
| Category | LED |
|---|---|
| Series | SkyPanel |
| Model | S30-C |
| Optical System | Soft Diffusion Panel |
| Light Aperture / Lens Diameter in mm | 355 x 300 mm |
| Light Aperture / Lens Diameter in inch | 14.0 x 11.8" |

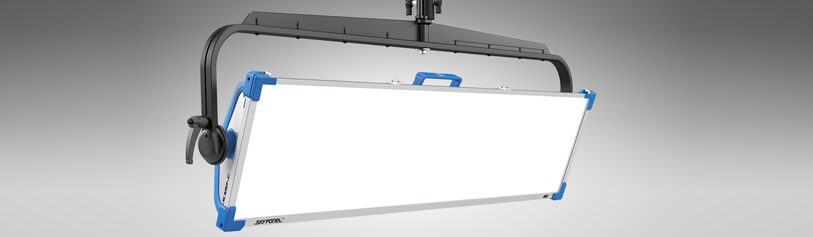

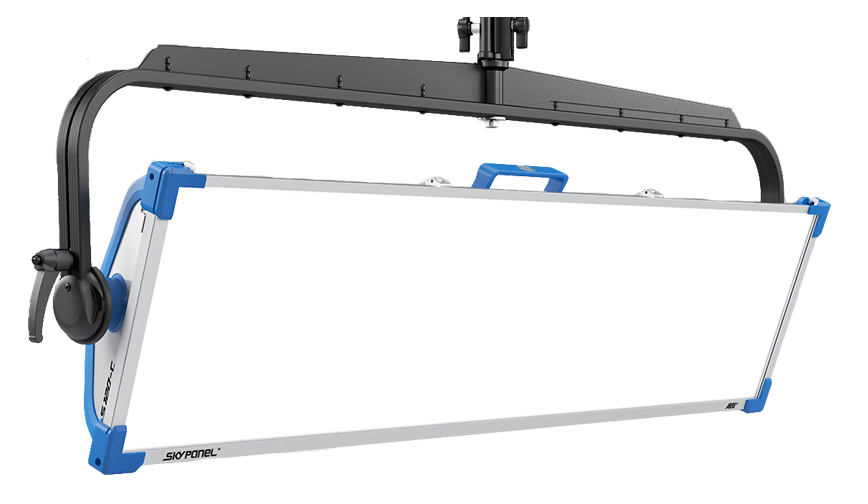

The SkyPanel Family. Different sizes for different applications.
SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S120 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.
Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include an onboard battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.
| Category | LED |
|---|---|
| Series | SkyPanel |
| Model | S120-C |
| Optical System | Soft Diffusion Panel |
| Light Aperture / Lens Diameter in mm | 1290 x 300 mm |
| Light Aperture / Lens Diameter in inch | 150.8 x 11.8" |

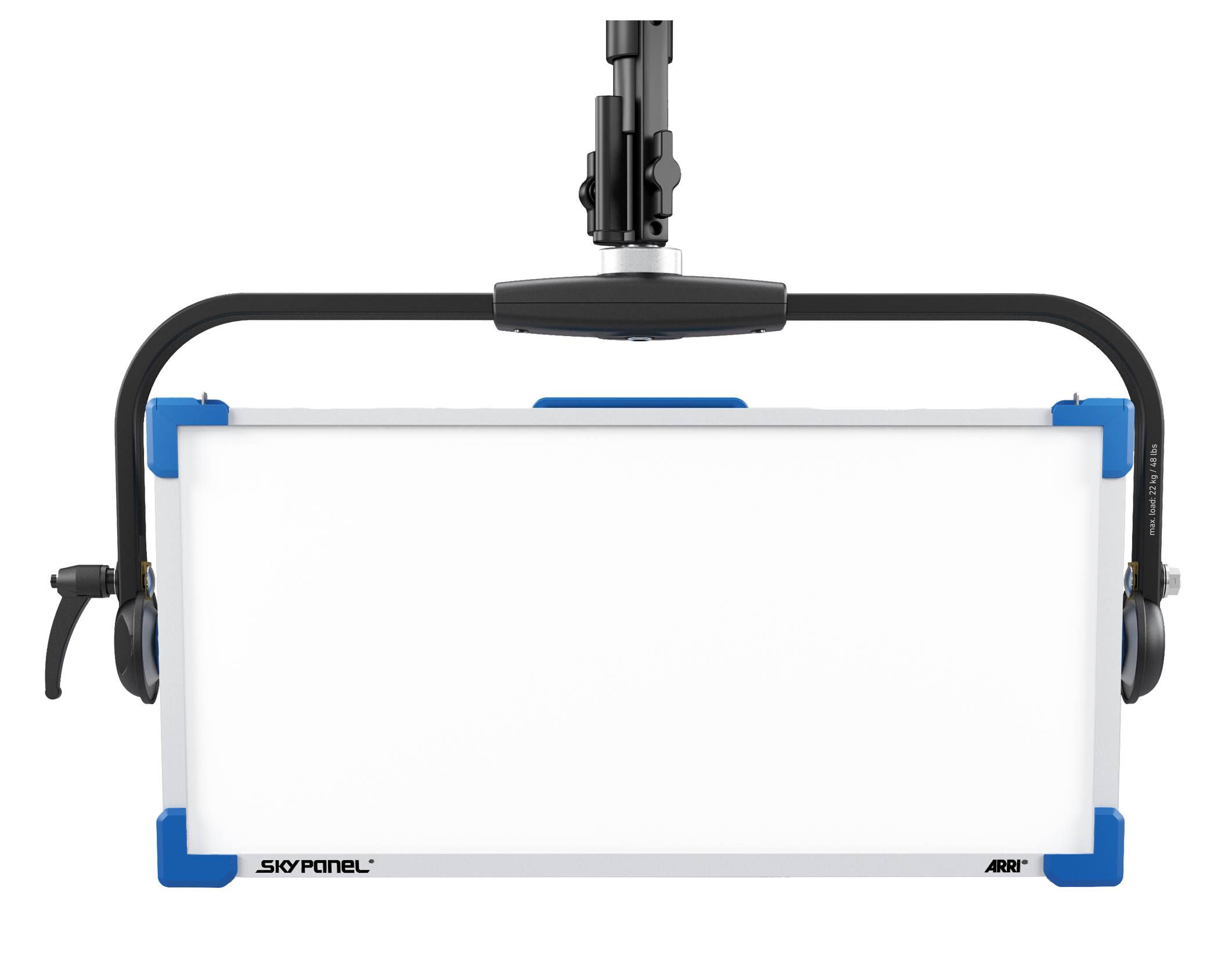

The SkyPanel Family. Different sizes for different applications.
SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.
Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include an onboard battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.
| Category | LED |
|---|---|
| Series | SkyPanel |
| Model | S60-C |
| Optical System | Soft Diffusion Panel |
| Light Aperture / Lens Diameter in mm | 645 x 300 mm |
| Light Aperture / Lens Diameter in inch | 25.4 x 11.8" |

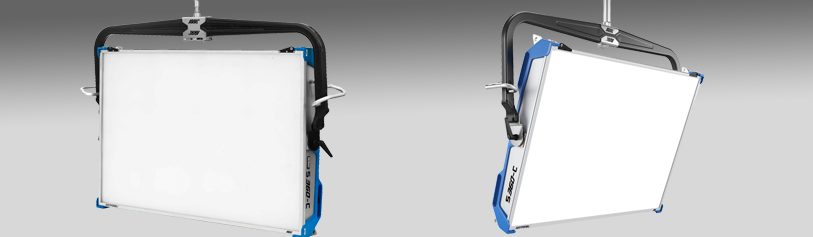

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI. SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.
Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Color) versions are fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. The S360-C is twice as bright as a 4 kW tungsten soft light or three times as bright as a 12 kW tungsten space light. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control. Achieving an energy efficiency of over 80 lumens per watt, the S360-C is also one of the most eco-friendly LED soft lights available while also being one of the brightest.
Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more
| Category | LED |
|---|---|
| Series | SkyPanel |
| Model | S360-C |
| Optical System | Swappaple Soft Diffusion Panel |
| Light Aperture / Lens Diameter in mm | 1280 x 870 mm |
| Light Aperture / Lens Diameter in inch | 50.4 x 34.4" |

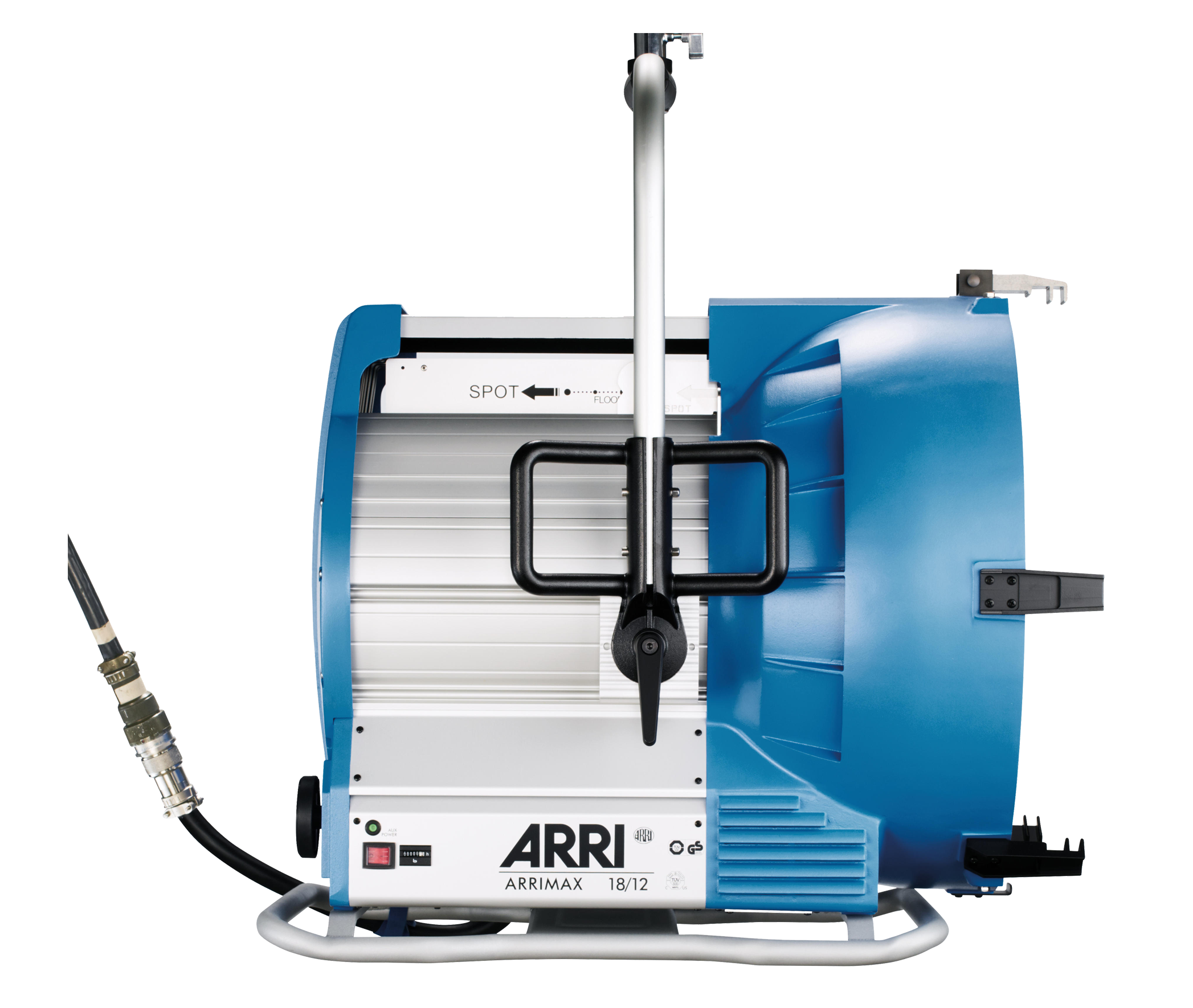

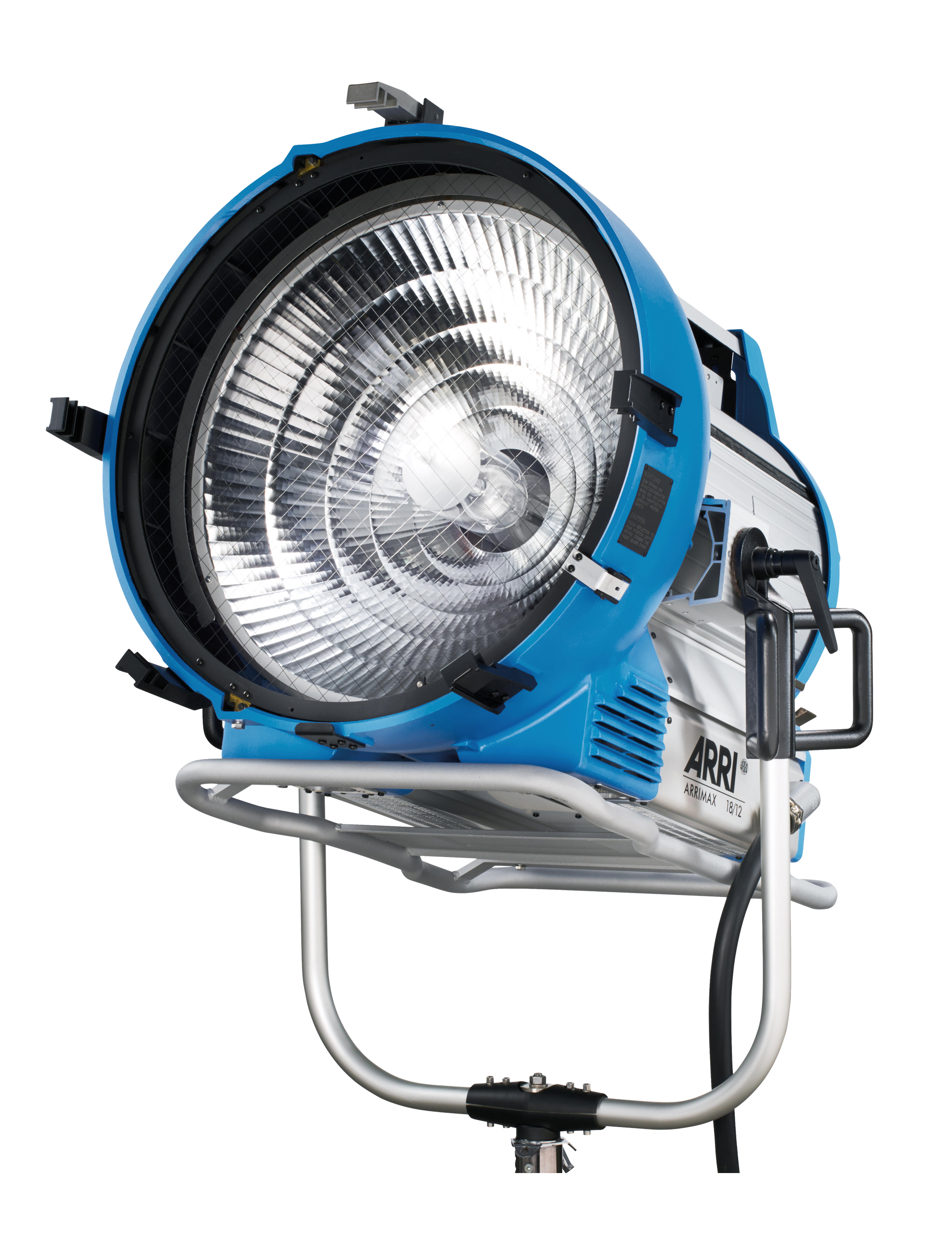

The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.
Safe and easy for both lamp type bases 18/12 kW, 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.
- Lens-less MAX Technology
- 15° to 50° continuous beam angle: standard reflector
- 8° to 15° beam angle: spot reflector
- Easy re-lamping
- ARRI Dual Pin Width support (GX51/GX38)
- IP Rating IP23
- Suitable for high frame rate images
- Works with motorized yoke "BigBee"
| Category | Daylight |
|---|---|
| Series | M-Series |
| Model | ARRIMAX 18/12 |
| Mains Plug | VEAM |
| Lamphead Type | Open Face with Facetted Reflector, 12,000 / 18,000 W |
| Reflector | MAX Technology reflector made of high purity aluminium |
More light, less work

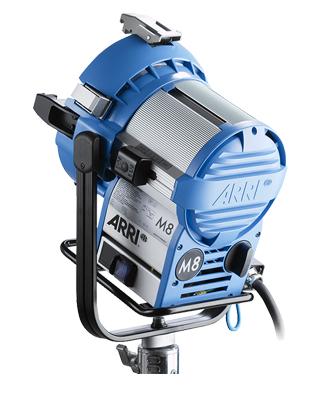

The M8 is the latest and smallest lighting fixture in ARRI’s highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.
The combination of an open face design and the unrivalled efficiency of the MAX Technology reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15° and 60° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.
- Lens-less MAX Technology: Easy to use
- Light output comparable to 1,200 W fixture
- Smallest lamphead with MAX Technology reflector
- Highly mobile for a wide range of uses
- Focusable between 15° and 60°
- Cross-Cooling allows safe operation even at 90° tilt
- Uses existing 230 & 245 mm accessories from ARRI True Blue D12 and from Chimera
- Compensation for Cable Losses (CCL)
- Uses existing 575 to 1,800 W cables with international connector
- Suitable for high frame rate images
- Tilt locks to hold heavy accessories stable
| Category | Daylight |
|---|---|
| Series | M-Series |
| Model | M-Series M8 |
| Mains Plug | VEAM |
| Lamphead Type | Open Face with Facetted Reflector, 800 W |
| Reflector | MAX Technology reflector made of high purity aluminium |
More light, less work

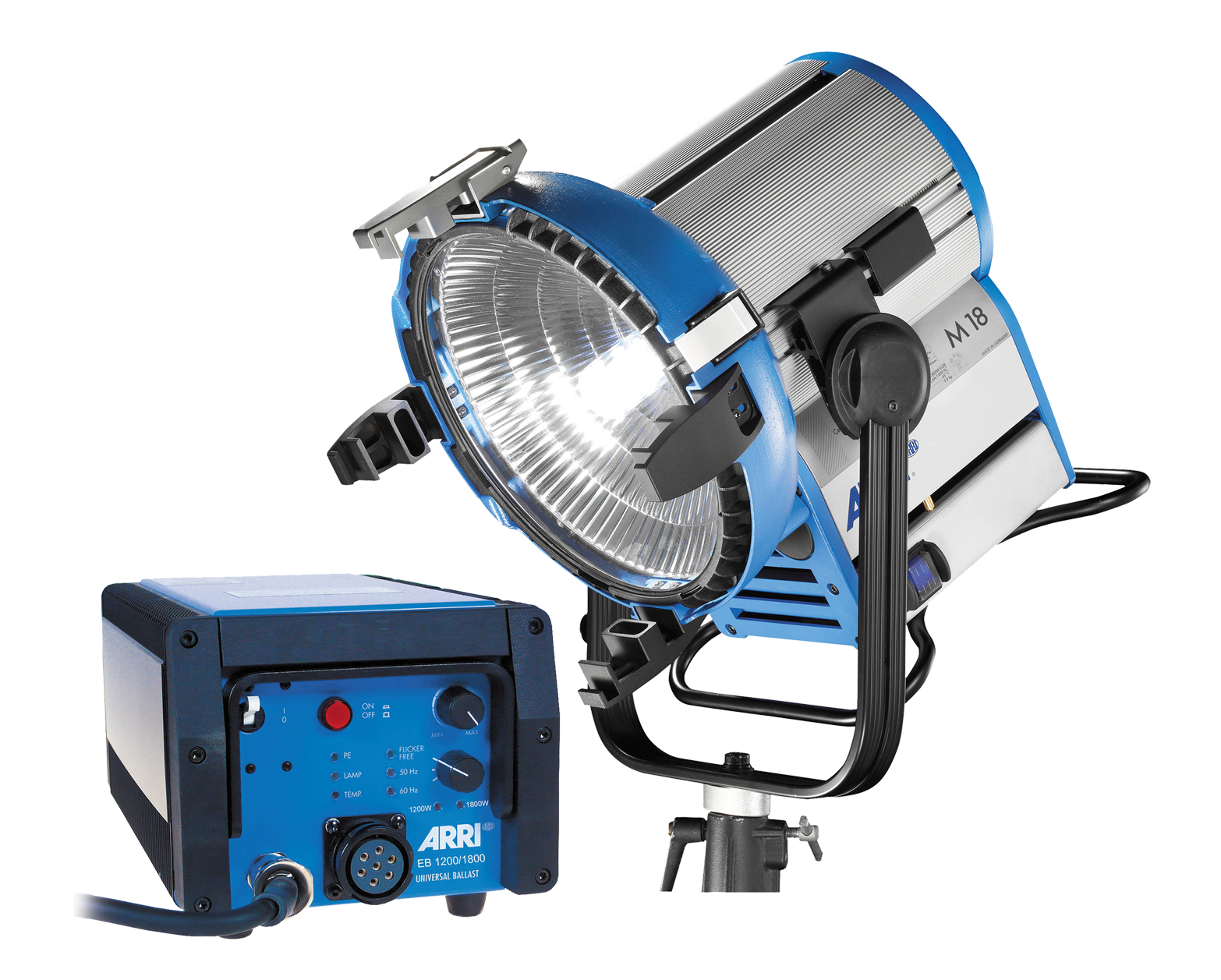

The M18 is an 1,800 W open face lamphead, combining the Academy Scientific and Engineering Awardwinning lens-less optical technology of the ARRIMAX with the innovative True Blue design. The result is an extremely powerful lamphead, as small as a 1,200W PAR but with a 70 % higher light output. The M-Series M18 fixture is adjustable from 20° to 60° without requiring spreader lenses.
- Lens-less MAX Technology: Easy to use
- New 1,800 W lamp
- Virtually the same size as a 1,200 W lamphead but more than 70 % brighter
- Runs from most domestic sockets world-wide
- Uses existing 575/1,200/1,800 W cables
- Can also be used with 1,200 W lamps and ballasts
- Cross Cooling allows safe operation at any tilt angle
- IP Rating IP23
- True Blue tilt lock holds even heavy Chimeras
- Easy maintenance
| Category | LED |
|---|---|
| Series | M-Series |
| Model | M-Series M18 |
| Mains Plug | VEAM, Schaltbau (GTV-Standard) |
| Lamphead Type | Open Face with Facetted Reflector, 1,200 / 1,800 W |
| Reflector | MAX Technology reflector made of high purity aluminium |

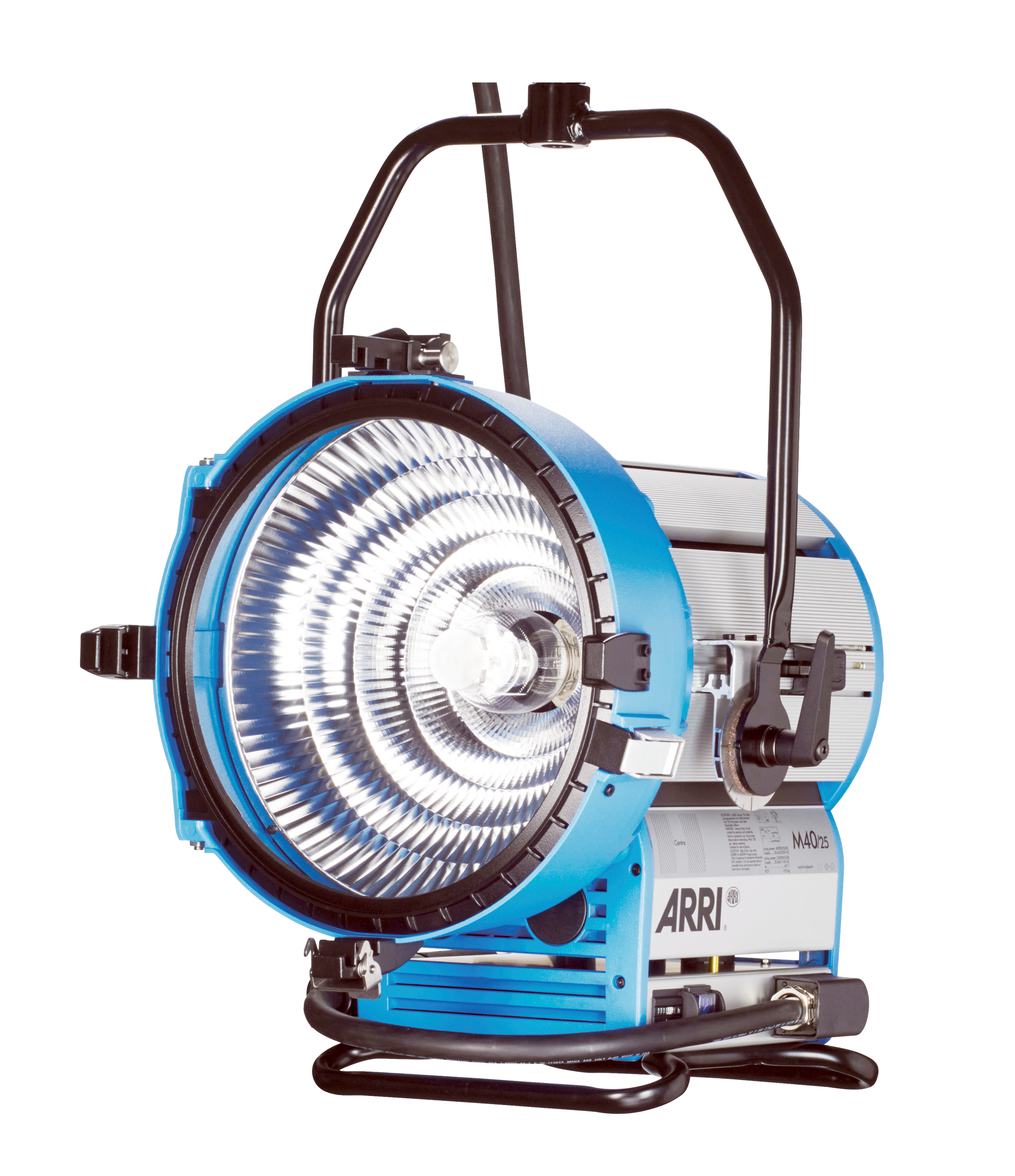

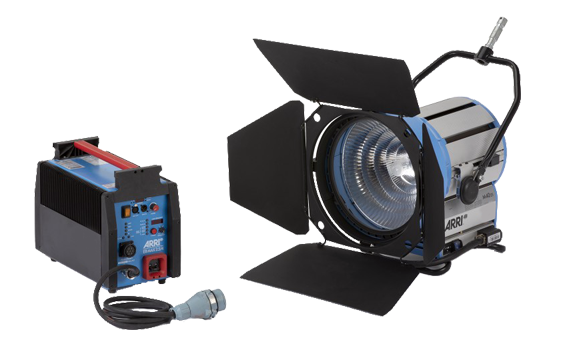

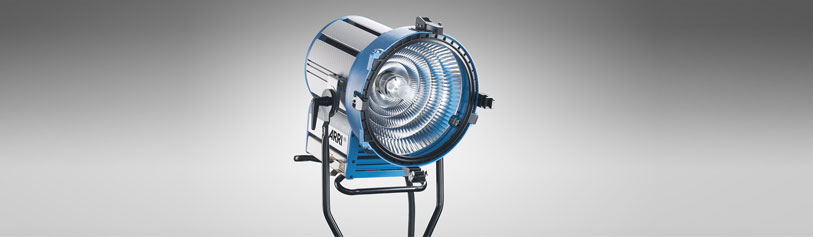

A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS40 in spot. Due to its unique, patented MAX Technology reflector, it is also focussable over a range of 18 to 52° Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4,000 W lamps, but can also be used with 2,500 W lamps.
The lamphead is equipped with a CCL module (Compensation of Cable Losses). When operated with the ARRI EB 2.5/4 kW High Speed AutoScan with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output indepent from cable length.
- Lens-less MAX Technology: Easy to use
- Around 30 % brighter than AS 40
- Compensation for Cable Losses (CCL)
- Tubular steel yoke
- Two disk brakes with steel handles
- Cross-Cooling allows safe operation at extreme tilt angles
- Suitable for high frame rate images
- IP Rating IP23
| Category | LED |
|---|---|
| Series | M-Series |
| Model | M-Series M40 |
| Mains Plug | VEAM, Schaltbau (GTV-Standard) |
| Lamphead Type | Open Face with Facetted Reflector, 2,500 / 4,000 W |
| Reflector | MAX Technology reflector made of high purity aluminium |
M-Series, the M40 unifies the advantages of a PAR light and a Fresnel fixture. Due to the unique lens-less MAX Technology, the unit is open face and thus very bright, but also focusable over a range of 18 to 52° HPA (Half Peak Angle), casting a crisp shadow. The reflector characteristics is optimised for 4000 W lamps, but can also be used with 2500 W lamps.
The lamp-head is equipped with a CCL module (compensation for cable loss). When operated with the ARRI EB 2.5/4 with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length.
- Lens-less MAX Technology: Easy to use.
- Around 30 % brighter than AS 40
- Same size as AS 40 but over 3 kg lighter.
- Compensation for Cable Loss (CCL)Tubular steel yoke.
- Two disk brakes with steel handle.
- Cross Cooling allows safe operation at extreme tilt angles.
- Protection class IP 23.
| Lamphead Type | Open Face with Faceted Reflector, 4000 W |
|---|---|
| Series | M-Series |
| Reflector Type | MAX reflector made of high purity aluminium |
| Lamp Type | Metal Halide 4000 W/SE; Metal Halide 2500 W/SE |
| Power Consumption | 4000 W / 2500 W |
| Voltage Range | 200 V / 115 V |
Before the M-Series with its Academy Award-winning reflector design was launched the ARRISUN Daylight lampheads have been the workhorses of location lighting and back then set the world standard in film and television lighting.
The ARRISUN product range includes the ARRISUN 2, ARRISUN 5, AS 18, AS 40/25 as well as ARRISUN 60 and ARRISUN 120.
Even though the ARRISUN range has been discontinued in 2017 and therefore is not produced anymore, the lampheads are still used for lighting. Especially when punch or bounce is required on set, they can be found together with its predecessor the ARRI M-Series.
Whereas the M-Series has many advantages due to the facetted reflector design the ARRISUN lampheads use a wide range of spread lenses to ensure maximum beam control in all situations.
When developing the M-Series ARRI used the advantages of the ARRISUN lampheads in order to build a reliable, compact and powerful predecessor. Therefore, the patented True Blue Cross cooling system, which maintains airflow at almost any tilt angle to keep the parts of the fixture within working limits, the easy access for maintenance as well as the separation of the electronic housing from the actual lamp housing to prolong the lifetime of the electronic components has been reused from the ARRISUN range.
| ARRISUN Lamphead | ARRISUN 2 | ARRISUN 5 | AS 18 | AS 40 | ARRISUN 60 | ARRISUN 120 |
|---|---|---|---|---|---|---|
| Ident-No | L1.77820.B | L1.77850.B | L1.37570.B | L1.37300.B | L1.77480.B | L1.77890.B |
| Type of Lamphead | PAR | PAR | PAR | PAR | PAR | PAR |
More light, less work

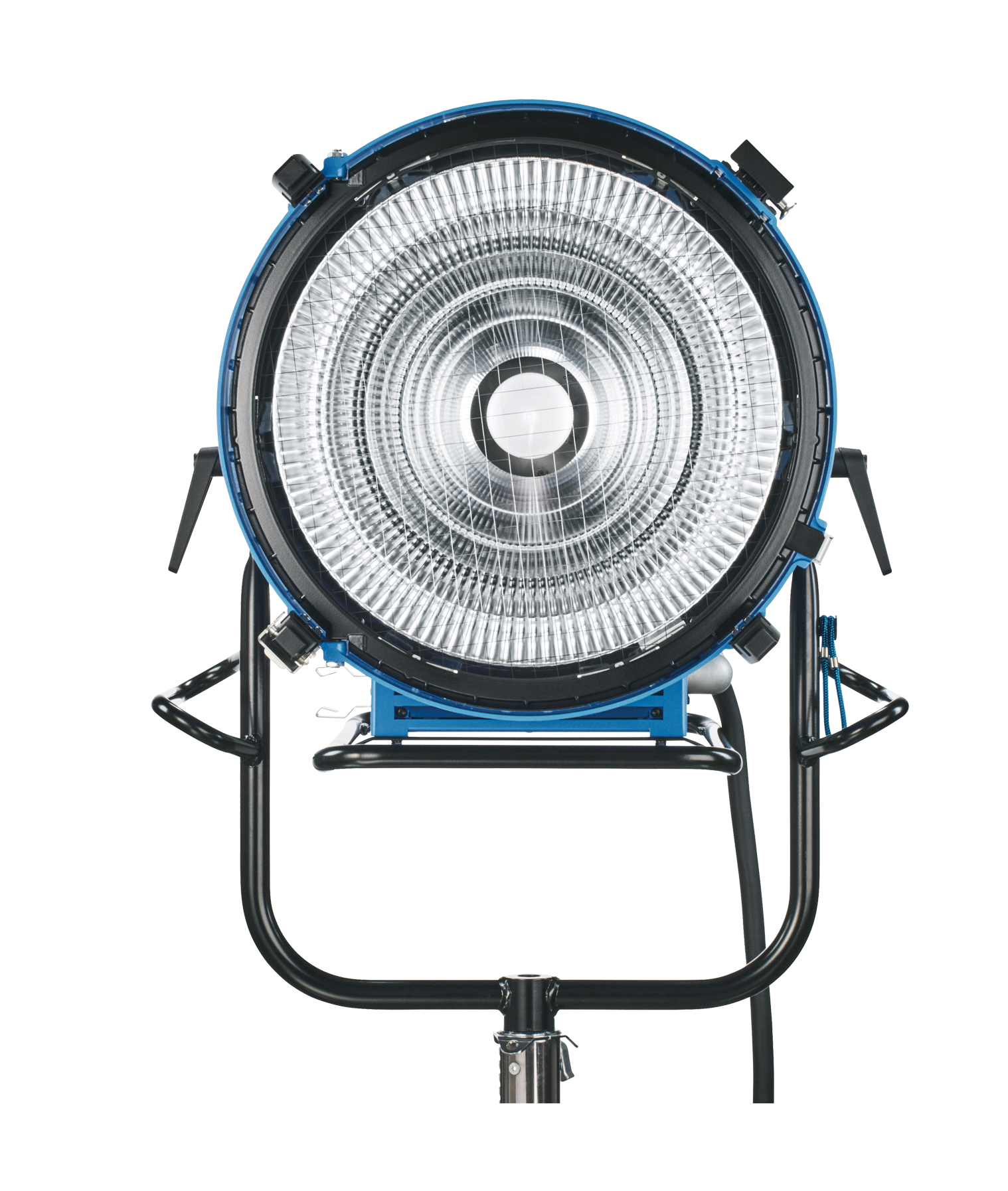

The M90 closes the gap between M40 and ARRIMAX 18/12, which sits almost exactly in the middle between the two. The unit is focusable from 15° up to 49° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. The elimination of spread lenses speeds up the workflow on set.
The 9,000 W lamp is very similar in size to the 6,000 W lamp, which makes the MAX Technology reflector function perfectly at both wattages. The superior housing and cooling concept have made a very compact design close to the dimensions of the ARRISUN 60.
Together with the latest electronic high speed ballast, EB 6/9 HS with AutoScan, this combination represents the state of the art daylight system for high quality images at high frame rates. All EB 6/9 kW ballasts are equipped with CCL module (Compensation of Cable Losses) enabling full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length. Since the accompanying EB 6/9 kW ballast uses the housing of the current EB 6000 Baby, the 6 kW Head-to-Ballast cables are compatible and the whole system is highly efficient and delivers a light output close to a traditional 12 kW PAR (with lens) within the dimensions of a 6 kW PAR system – it punches above its weight!
- Lens-less MAX Technology
- Light output matches a 12 kW PAR (with lens)
- As small and lightweight as a 6 kW PAR
- Can also be used with 6,000 W (120 V nominal) lamps and ballasts
- Tilt locks on both sides hold any heavy accessories
- Easy maintenance
- Weather resistant IP23
- Suitable for high frame rate images
| Category | Daylight |
|---|---|
| Series | M-Series |
| Model | M-Series M90 |
| Mains Plug | VEAM |
| Lamphead Type | Open Face with Facetted Reflector, 6,000 / 9,000 W |
| Reflector | MAX Technology reflector made of high purity aluminium |

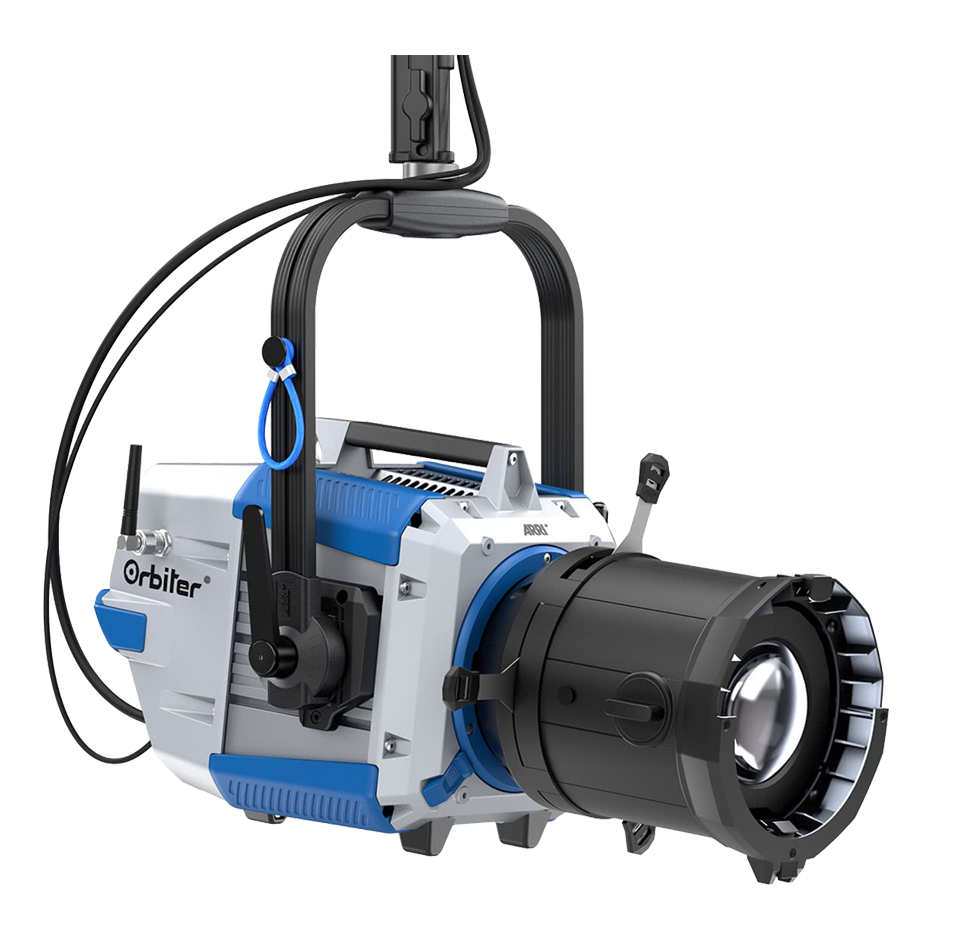

What is Orbiter?
Orbiter is an ultra-bright, tunable, and directional LED fixture from ARRI. All systems in Orbiter are completely new and designed with versatility in mind. Orbiter’s new six-color light engine delivers a wide-color gamut and outstanding color rendition across all color temperatures along with industry-leading, smooth dimming from 100 to 0%. With its changeable optics, Orbiter can transform into many different types of lampheads including open face, soft light, domes, and other future possibilities. Orbiter’s state-of-the-art technology and versatile design makes it an optimal lamphead for today and for the future with endless possibilities for updates, configurations, and enhancements
- A Wide Variety of Changeable Optics
- State-of-the-art, six-color LED light engine
- Sheer Output Immense brightness with full color tunability
- Technology Unleashed Fast, powerful, and full of possibilities
- Connectivity Ready for today, prepared for tomorrow
- Powerful Software Packed with amazing features
- Removable Control Panel Easy to use, powerful control
- Integrated Color Sensor Measure ambient light directly on fixture
- Full Suite of Sensors Generating more information for more control
- Motion Picture
- Broadcast & Media
- Theater & Live Entertainment
- Still Photography
| Optical System | Changeable optics |
|---|---|
| Light Aperture | 42 mm / 1,66“, without optics |
| Beam Angle | 80° Half Peak Angle, without optics |
| Weight | Fixture only: 11,7 kg / 25.8 lbs Manual Version: 14,2 kg / 31.3 lbs Pole Op Version: 14,9 kg / 32.9 lbs |
| Handling | Aluminum yoke with quick release, high strength tilt lock, pole operation option (pan and tilt) |
| Mounting | 28 mm Spigot (Junior Pin) |
ARRI continues to expand its L-Series with the introduction of the L5-C 5" LED Fresnel . The key characteristic of any Fresnel is flood to spot capability and the L5-C offers an impressive beam angle adjustment of 14-50°.
The ARRI Junior series is ideal for use where compact, lightweight tungsten fresnel spotlights are required, especially in small studios where grid height is a problem. Classic ARRI construction, using corrosion-resistant, extruded, die cast aluminium, maximises body strength while maintaining the light weight of a location fixture. Despite the small size of ARRI Junior lampheads, their short focal length, wide angle lenses produce impressive light output and good light distribution over the full beam area. ARRI Junior lampheads are available in both manual and pole-operated versions.
- High quality lenses and reflectors for excellent optical performance
- Compact size and lightweight
- Robust construction of rust-resistant, extruded, die cast aluminium
- Easy and convenient operation
- Quick and easy service access
- Extensive range of accessories
| Category | Tungsten |
|---|---|
| Series | ARRI Junior |

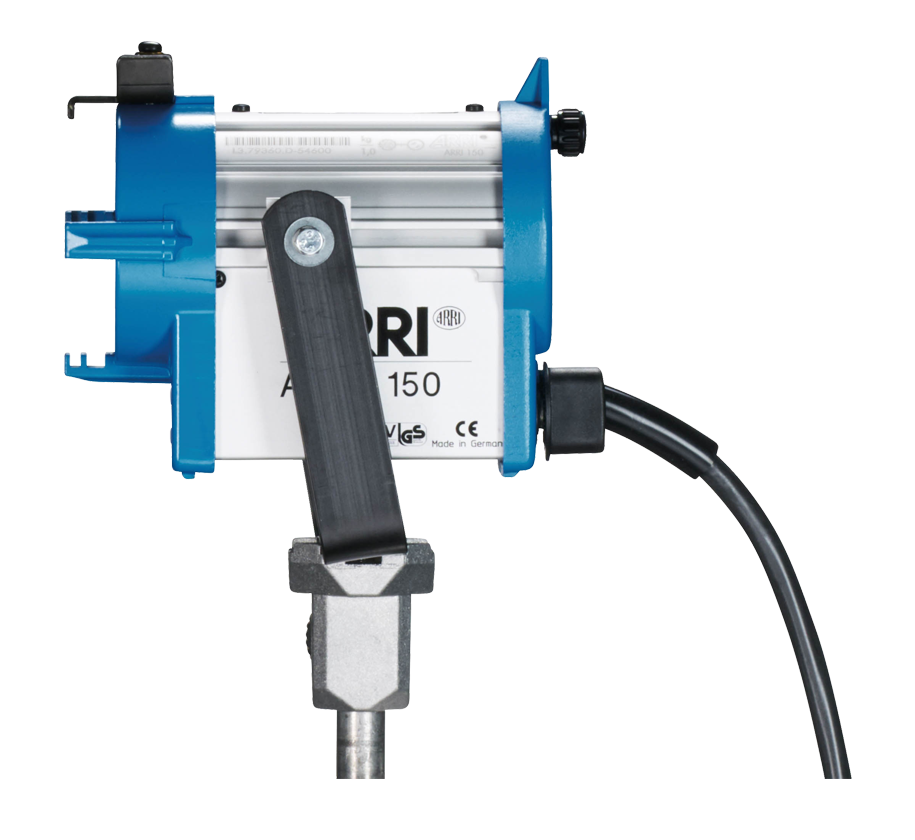

| Model | ARRI 150 |
| Mains Plug | Schuko, Bare Ends |
| Lamphead Type | Fresnel, 150 W |
| Reflector | Spherical specular high purity aluminium |
Portable lightweight fresnel spotlight
The ARRI Junior series is ideal for use where compact, lightweight tungsten fresnel spotlights are required, especially in small studios where grid height is a problem. Classic ARRI construction, using corrosion-resistant, extruded, die cast aluminium, maximises body strength while maintaining the light weight of a location fixture. Despite the small size of ARRI Junior lampheads, their short focal length, wide angle lenses produce impressive light output and good light distribution over the full beam area. ARRI Junior lampheads are available in both manual and pole-operated versions.
- High quality lenses and reflectors for excellent optical performance
- Compact size and lightweight
- Robust construction of rust-resistant, extruded, die cast aluminium
- Easy and convenient operation
- Quick and easy service access
- Extensive range of accessories
| Category | Tungsten |
|---|---|
| Series | ARRI Junior |
| Model | ARRI 300 Plus |
| Mains Plug | Schuko, Bare Ends |
| Lamphead Type | Fresnel, 300 W |
| Reflector | Spherical specular high purity aluminium |

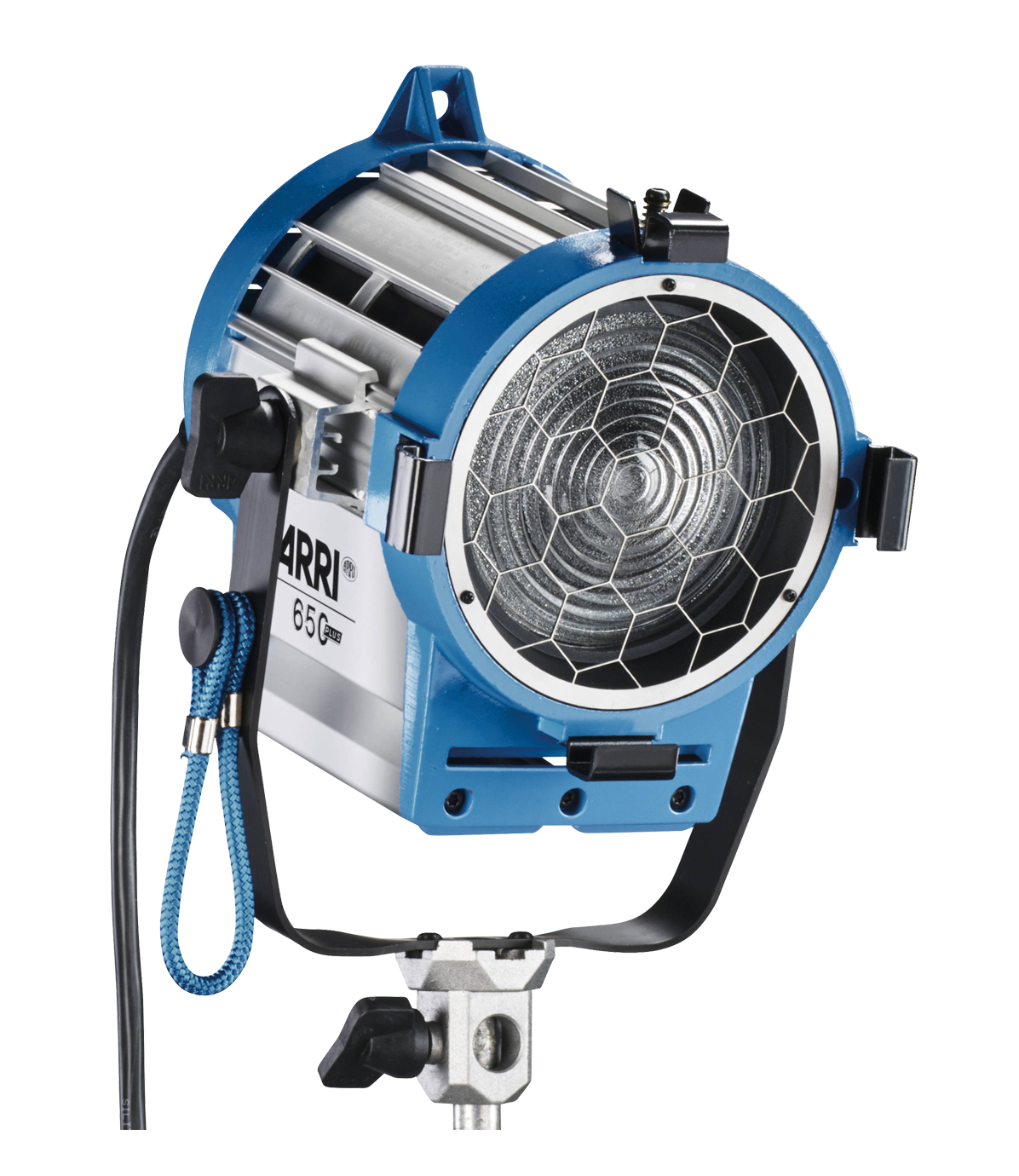

Portable lightweight fresnel spotlight
The ARRI Junior series is ideal for use where compact, lightweight tungsten fresnel spotlights are required, especially in small studios where grid height is a problem. Classic ARRI construction, using corrosion-resistant, extruded, die cast aluminium, maximises body strength while maintaining the light weight of a location fixture. Despite the small size of ARRI Junior lampheads, their short focal length, wide angle lenses produce impressive light output and good light distribution over the full beam area. ARRI Junior lampheads are available in both manual and pole-operated versions.
- High quality lenses and reflectors for excellent optical performance
- Compact size and lightweight
- Robust construction of rust-resistant, extruded, die cast aluminium
- Easy and convenient operation
- Quick and easy service access
- Extensive range of accessories
| Category | Tungsten |
|---|---|
| Series | ARRI Junior |
| Model | ARRI 650 Plus |
| Mains Plug | Schuko, Bare Ends |
| Lamphead Type | Fresnel, 650 W |
| Reflector | Spherical specular high purity aluminium |
Production standard for large tungsten sources.
ARRI STUDIO Fresnels are an ideal choice for film studios where high performance and high wattage tungsten lampheads are required. The large lenses give great efficiency and an extremely wide beam spread. ARRI's elegant modular construction, using corrosion-free aluminium extrusions and lightweight die castings, offers great structural strength.
- High efficiency wide-angle lenses
- Corrosion-resistant aluminium construction
- Extremely even light distribution
- Focus knob on front and rear
- Easy service access
- Wide range of accessories
| Series | STUDIO T |
|---|---|

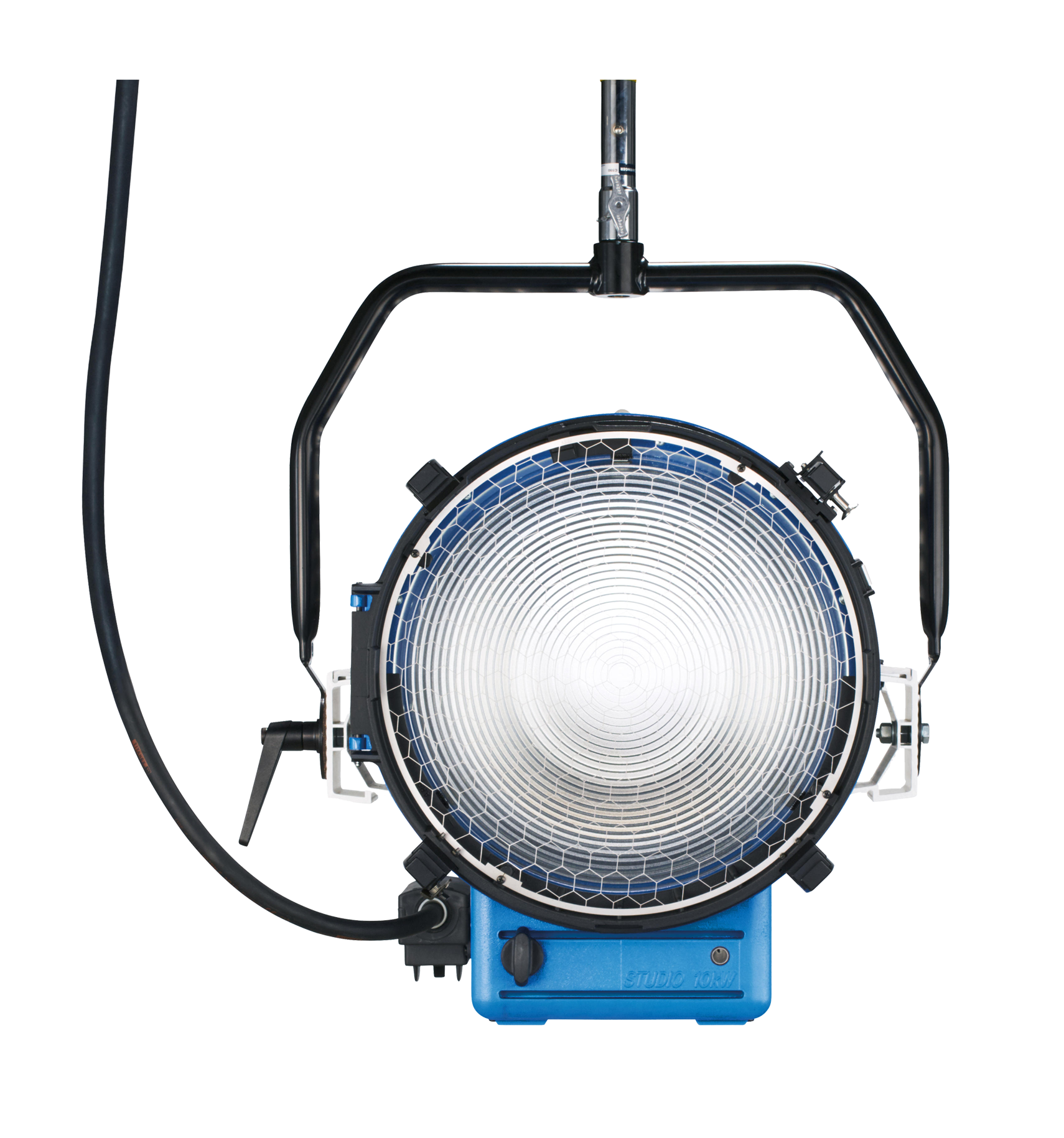

| Model | STUDIO T12 |
| Mains Plug | Bare Ends |
| Lamphead Type | Fresnel, 12,000 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | 12,000 W / 230 V monoplane; CP83 10,000 W / 230 V monoplane |

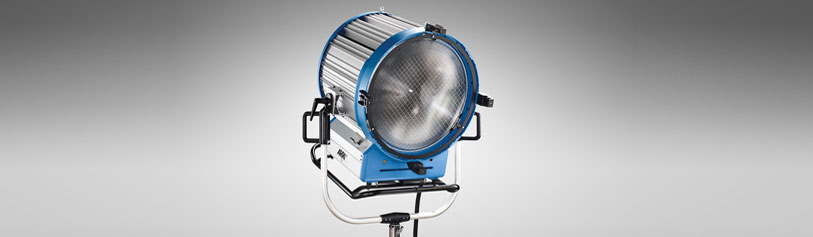

Production standard for large tungsten sources
ARRI STUDIO Fresnels are an ideal choice for film studios where high performance and high wattage tungsten lampheads are required. The large lenses give great efficiency and an extremely wide beam spread. ARRI's elegant modular construction, using corrosion-free aluminium extrusions and lightweight die castings, offers great structural strength.
- High efficiency wide-angle lenses
- Corrosion-resistant aluminium construction
- Extremely even light distribution
- Focus knob on front and rear
- Easy service access
- Wide range of accessories

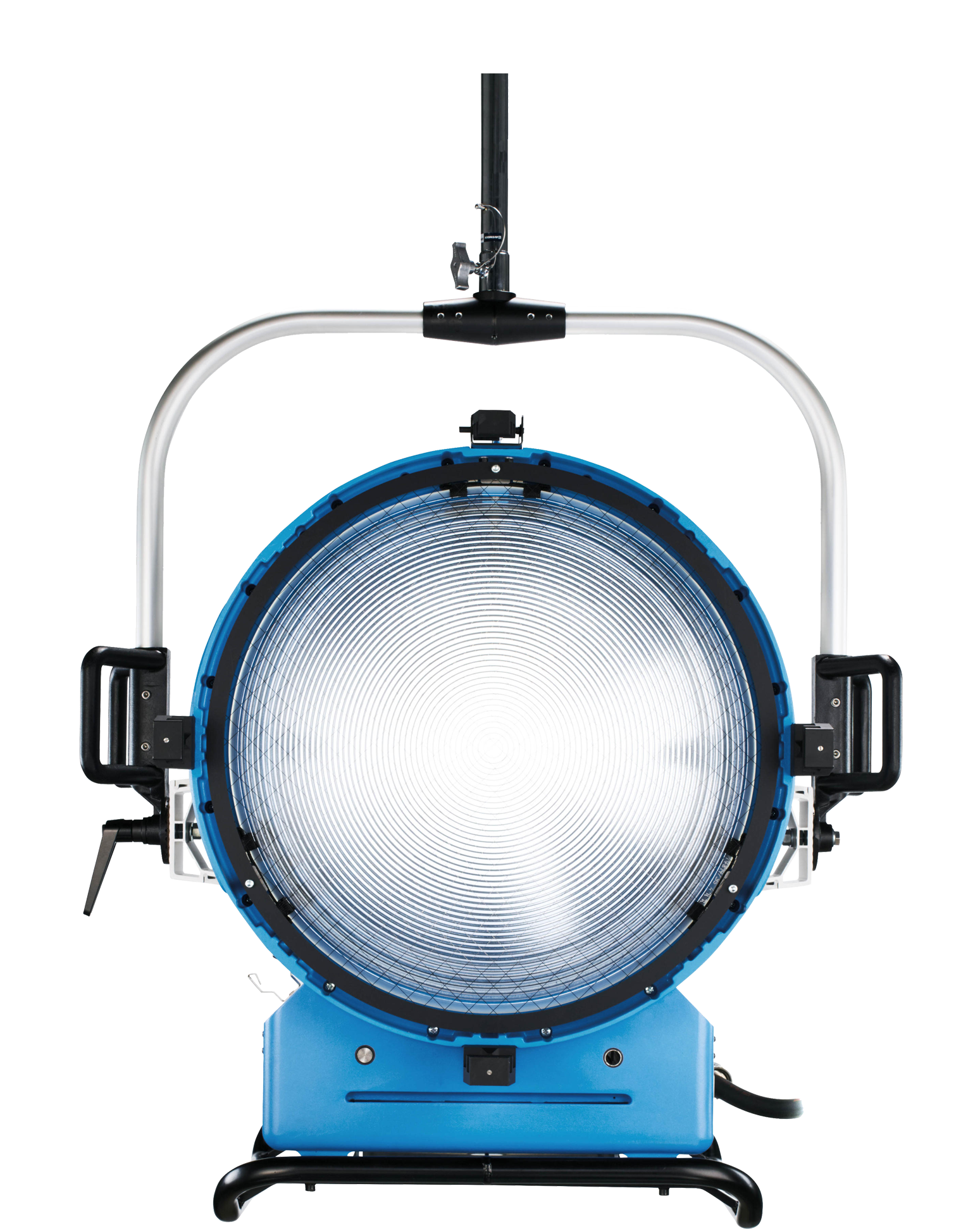

| Series | STUDIO T |
|---|---|
| Model | STUDIO T24 |
| Mains Plug | VEAM |
| Lamphead Type | Fresnel, 24,000 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | 24,000 W monoplane; CP99 20,000 W monoplane, 230 V |

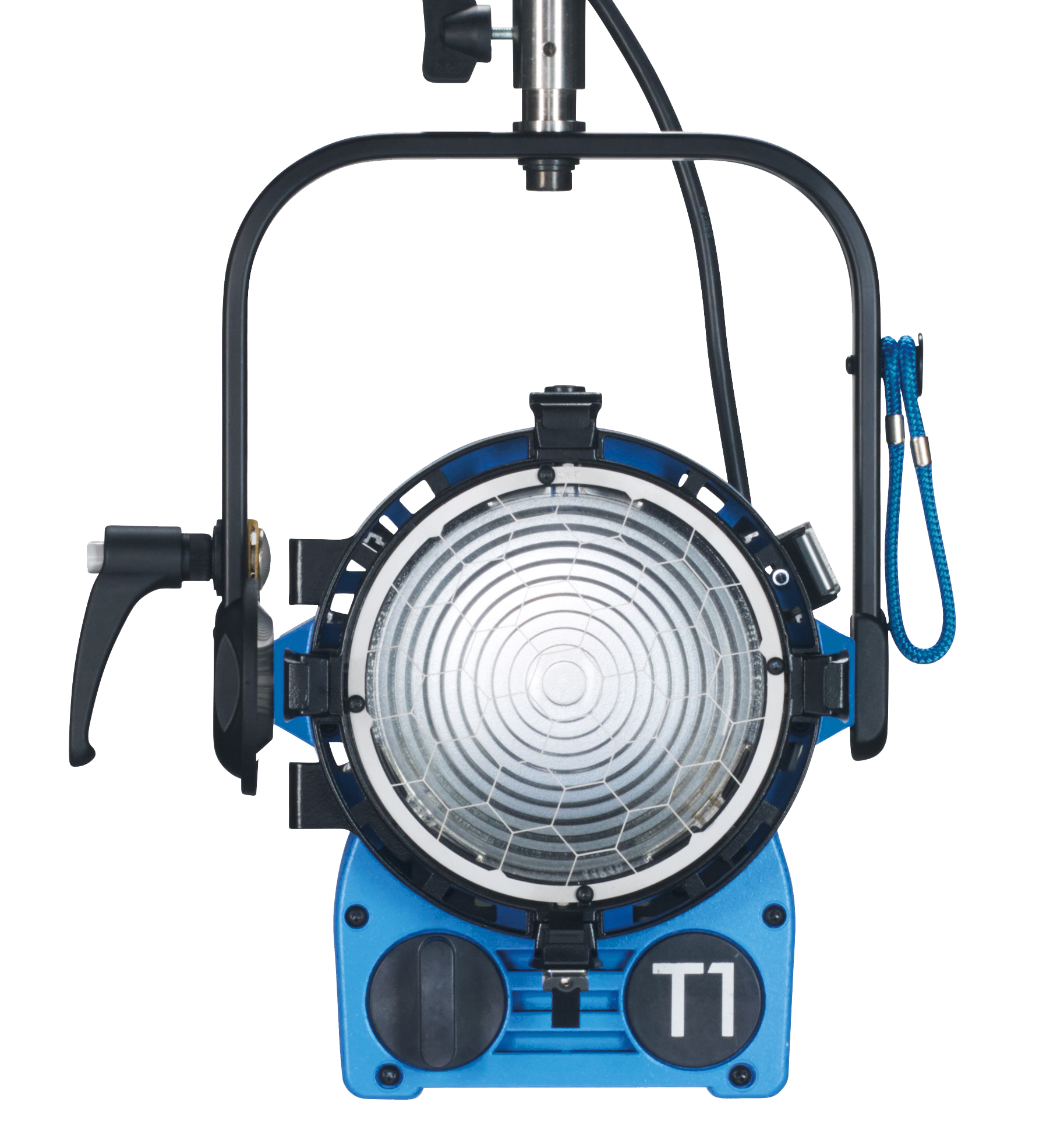

ARRI True Blue® – Location, Studio and Theater Fresnels
ARRI True Blue represent an unprecedented evolution of the location fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI True Blue T1 is available in both manual and pole-operated versions.
- Cross-Cooling System: new, highly effective cooling streams in addition to conventional cooling
- Sliding Stirrup: centre of gravity adjustment
- Tilt Lock: stainless steel friction disc for rigid lock-off
- Top Latches: application-oriented Top Latches for location or studio use
- Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
- Stainless Steel Lens Protection: maximised light transmission and high temperature stability
- Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
- Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
- Protection Rating IP23: safe indoor and outdoor use Safety Certification: CE, CB, GS, cNRTLus
| Category | Tungsten |
|---|---|
| Series | True Blue T |
| Model | True Blue T1 |
| Mains Plug | Schuko, Bare Ends |
| Lamphead Type | Fresnel, 1,000 W |
| Reflector | Spherical specular high purity aluminium |

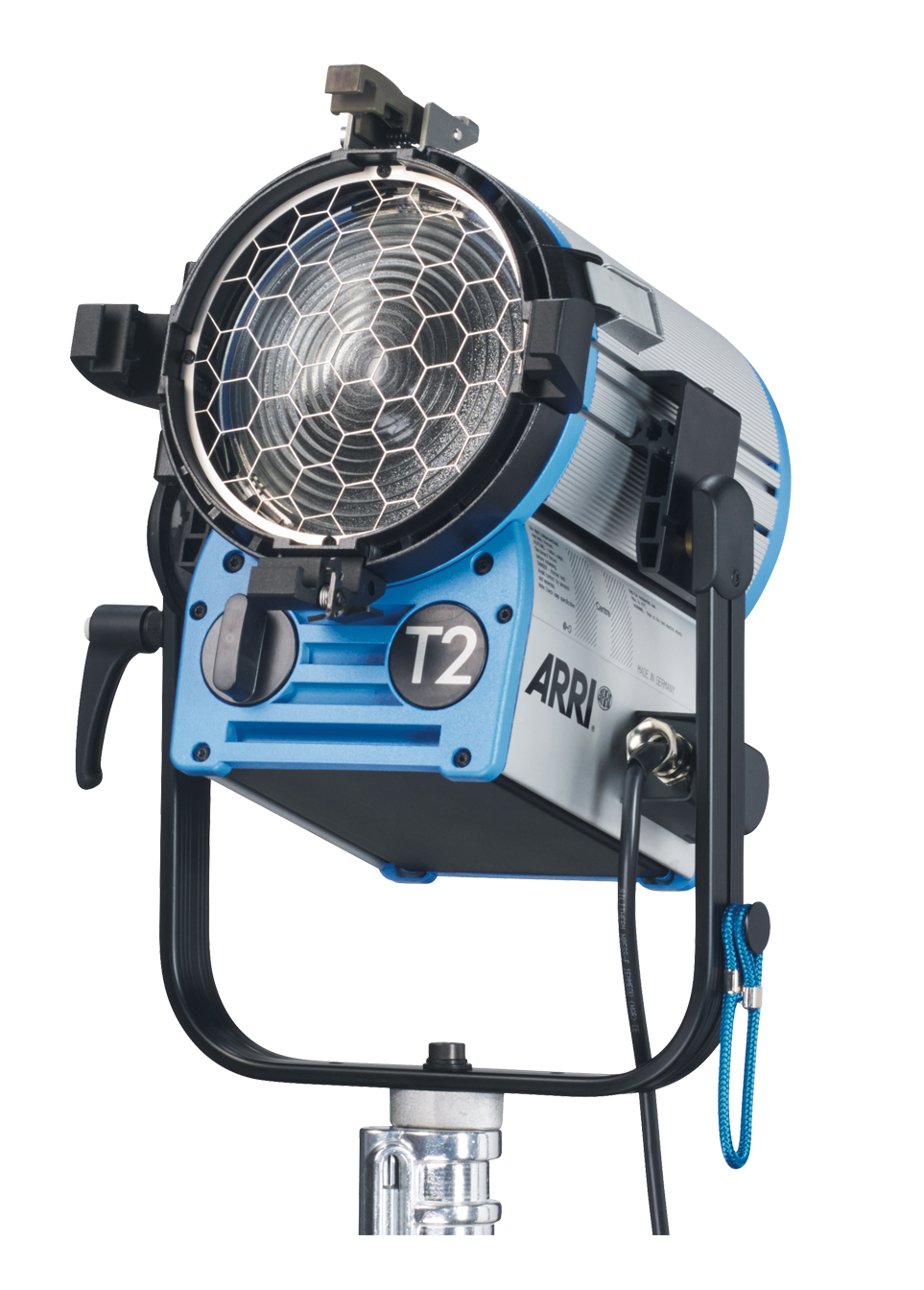

ARRI True Blue represent an unprecedented evolution of the location fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI True Blue T2 is available in both manual and pole-operated versions.
- Cross-Cooling System: new, highly effective cooling streams in addition to conventional cooling
- Sliding Stirrup: centre of gravity adjustment
- Tilt Lock: stainless steel friction disc for rigid lock-off
- Top Latches: application-oriented Top Latches for location or studio use
- Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
- Stainless Steel Lens Protection: maximised light transmission and high temperature stability
- Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
- Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
- Protection Rating IP23: safe indoor and outdoor use Safety Certification: CE, CB, GS, cNRTLus
| Category | Tungsten |
|---|---|
| Series | True Blue T |
| Model | True Blue T2 |
| Mains Plug | Schuko, Bare Ends |
| Lamphead Type | Fresnel, 2,000 W |
| Reflector | Spherical specular high purity aluminium |
ARRI True Blue® – Location, Studio and Theater Fresnels

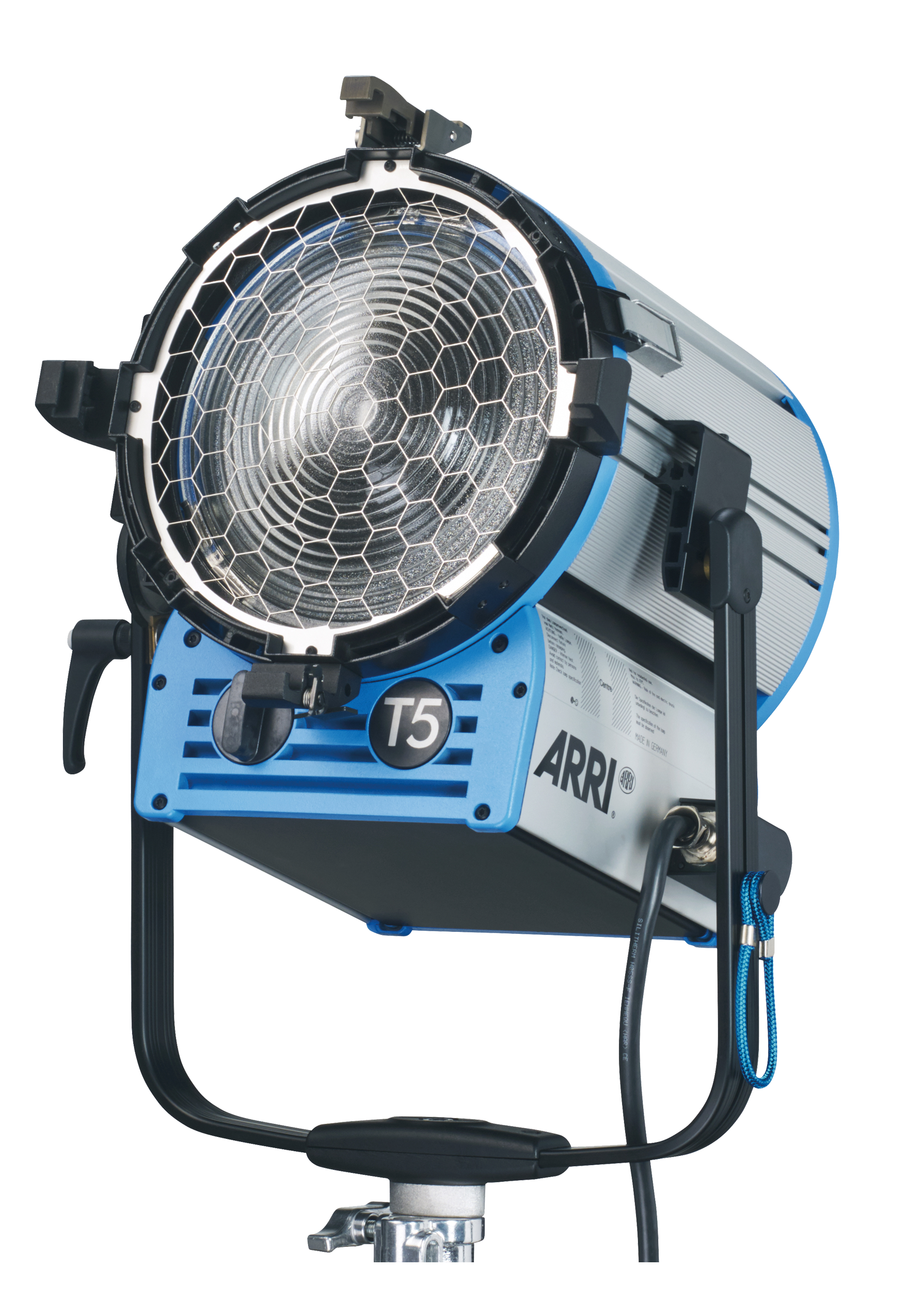

ARRI True Blue represent an unprecedented evolution of the location fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI True Blue T5 is available in both manual and pole-operated versions.
- Cross-Cooling System: new, highly effective cooling streams in addition to conventional cooling
- Sliding Stirrup: centre of gravity adjustment
- Tilt Lock: stainless steel friction disc for rigid lock-off
- Top Latches: application-oriented Top Latches for location or studio use
- Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
- Stainless Steel Lens Protection: maximised light transmission and high temperature stability
- Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
- Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
- Protection Rating IP23: safe indoor and outdoor use Safety Certification: CE, CB, GS, cNRTLus
| Category | Tungsten |
|---|---|
| Series | True Blue T |
| Model | True Blue T5 |
| Mains Plug | Bare Ends |
| Lamphead Type | Fresnel, 5,000 W |
| Reflector | Spherical specular high purity aluminium |

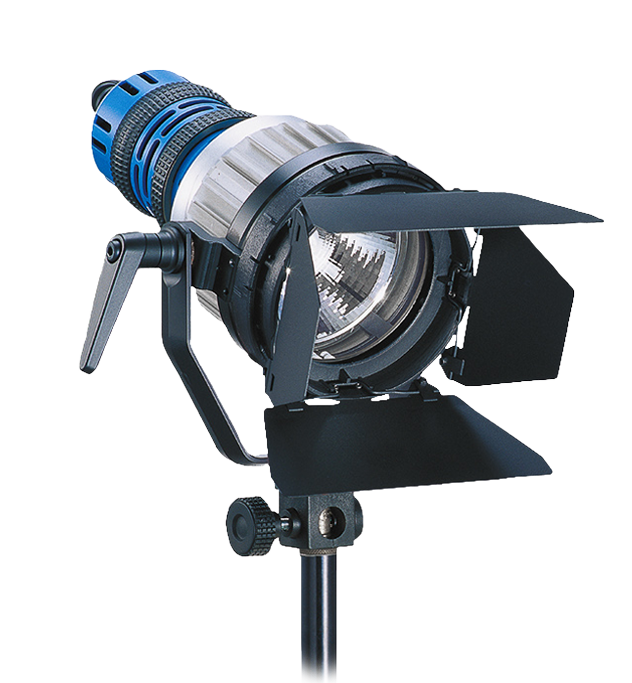

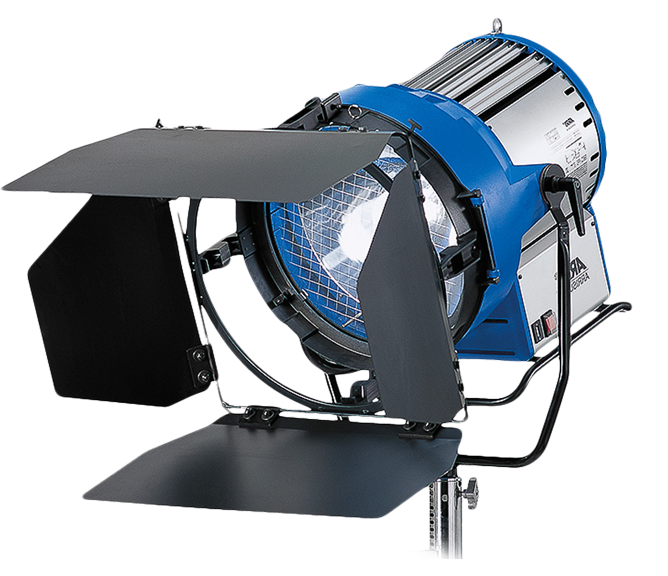

Before the M-Series with its Academy Award-winning reflector design was launched the ARRISUN Daylight lampheads have been the workhorses of location lighting and back then set the world standard in film and television lighting.
The ARRISUN product range includes the ARRISUN 2, ARRISUN 5, AS 18, AS 40/25 as well as ARRISUN 60 and ARRISUN 120
Even though the ARRISUN range has been discontinued in 2017 and therefore is not produced anymore, the lampheads are still used for lighting. Especially when punch or bounce is required on set, they can be found together with its predecessor the ARRI M-Series.
Whereas the M-Series has many advantages due to the facetted reflector design the ARRISUN lampheads use a wide range of spread lenses to ensure maximum beam control in all situations.
When developing the M-Series ARRI used the advantages of the ARRISUN lampheads in order to build a reliable, compact and powerful predecessor. Therefore, the patented True Blue Cross cooling system, which maintains airflow at almost any tilt angle to keep the parts of the fixture within working limits, the easy access for maintenance as well as the separation of the electronic housing from the actual lamp housing to prolong the lifetime of the electronic components has been reused from the ARRISUN range.
- Superior output
- Coated double UV glass
- Easy spot-to-fiood adjustment
- Cold light reflector technology
- Compact design
- Positive bayonet lock system
- Colour coded drop-in lenses
- Ballast options:
ARRI True Blue® – Location, Studio and Theater Fresnels

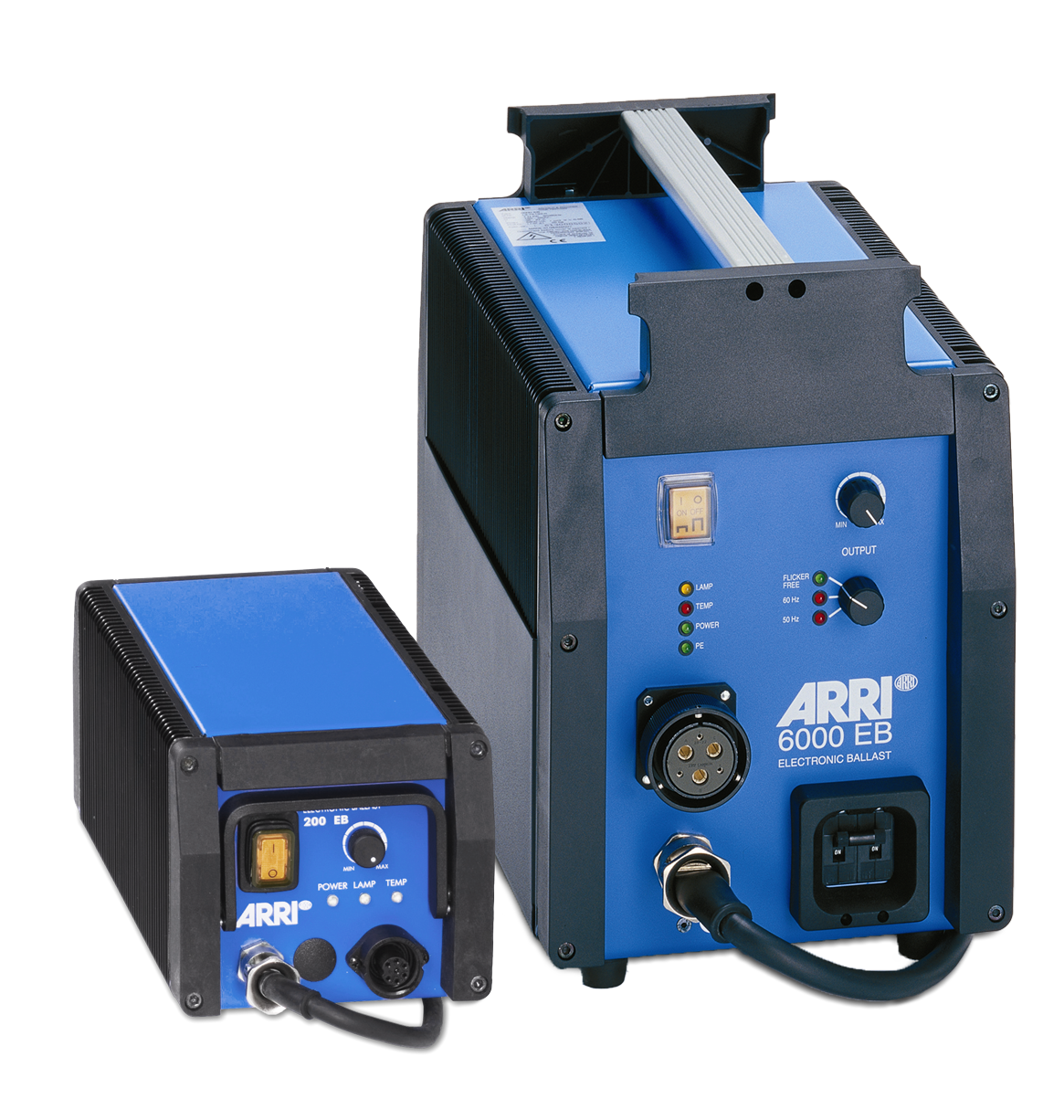

For over 25 years, discharge lighting ballasts have been an integral part of the ARRI Lighting family. During that course of time, the range has developed to comprise the reliable, robust and efficient components recognised today as the industry standard for film, theatre and events. The range of ARRI Basic ballasts features state-of-the-art electronics and offers easy maintenance, automatic fault detection and extensive status indicators, along with impeccable reliability and safety. A wide range of cables and accessories complete the ARRI Lighting product line.
Offers various quality standards like every other ARRI ballast. Therefore protection against overvoltage and overtemperature as well as the robust design and various LED indicators are implemented.
of the Basic Range are equipped with the must-have feature ALF (Active Line Filter), optimizing power consumption and distribution, so variations in power supply voltage and frequency of up to 10 % have no influence on the power of the lamp
