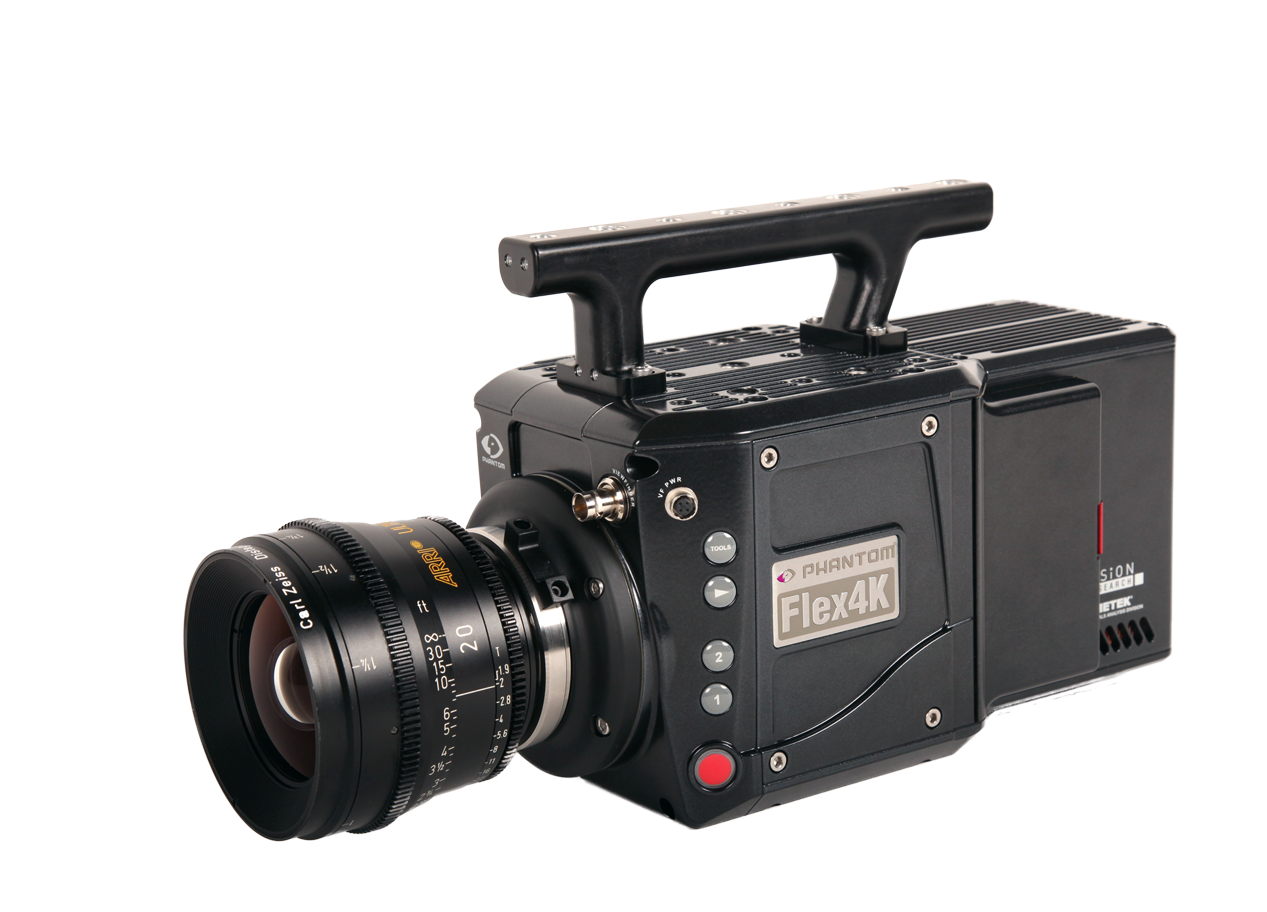

The Phantom Flex4K produces highly detailed 4K imaging at 1,000 fps. The CineMag recording media enhances workflow capabilities. The Flex4K has been designed specifically for professional cinema applications.
The Phantom Flex4K delivers low noise, high resolution 4K imaging at super 35mm format. The full- size images are delivered via 9.4 Gpx throughput in the Cine Raw file format. With up to 1,000 fps in 4K the images are compatible with major color grading and video editing applications and support standard sync-sound frame rates
The Flex4K features a complete on-camera control interface view a menu system. 100% un-tethered operation is possible through battery mounts and remote-control options.
- 3G-SDI Video Outputs
- Battery Mounts Available:
- On-Camera Menu System
- Remote Control options
- CineStation IV includes 10Gb Ethernet
- Cine Raw file format
Resolution | FPS |
4096 x 2304 | 938 |
4096 x 2160 | 1,000 |
2048 x 1152 | 1,900 |
1920 x 1080* | 1,977 |
1280 x 720* | 2,932 |
The Phantom Flex4K-GS (global shutter) produces highly detailed 4K imaging at 1,000 fps. Developed for scientific research applications to deliver 4K resolution imaging with no distortion. The CineMag recording media enhances workflow capabilities.
The Phantom Flex4K-GS delivers low noise, high resolution 4K imaging at super 35mm format. The full- size images are delivered via 9.4 Gpx throughput for speeds of up to 1,000 fps in 4K. The Cine Raw file format is compatible with major color grading and video editing applications.
Lens mounts are interchangeable between PL, Canon EF (with electronic control), and Nikon F. Lens mount options increase the operator flexibility to ensure proper shots and decreases workflow difficulty between shots.
The Flex4K-GS features the same full-featured on-camera control interface that the standard Phantom Flex4K does. This menu system, battery mounts, and remote-control options allow for 100% un-tethered operation. The Flex4K-GS also supports standard sync-sound frame rates.
- 3G-SDI Video Outputs
- Battery Mounts Available:
- On-Camera Menu System
- Remote Control options
- CineStation IV includes 10Gb Ethernet
- Cine Raw file format
Resolution | FPS |
4096 x 2304 | 938 |
4096 x 2160 | 1,000 |
2048 x 1152 | 1,900 |
1920 x 1080* | 1,977 |
1280 x 720* | 2,932 |
