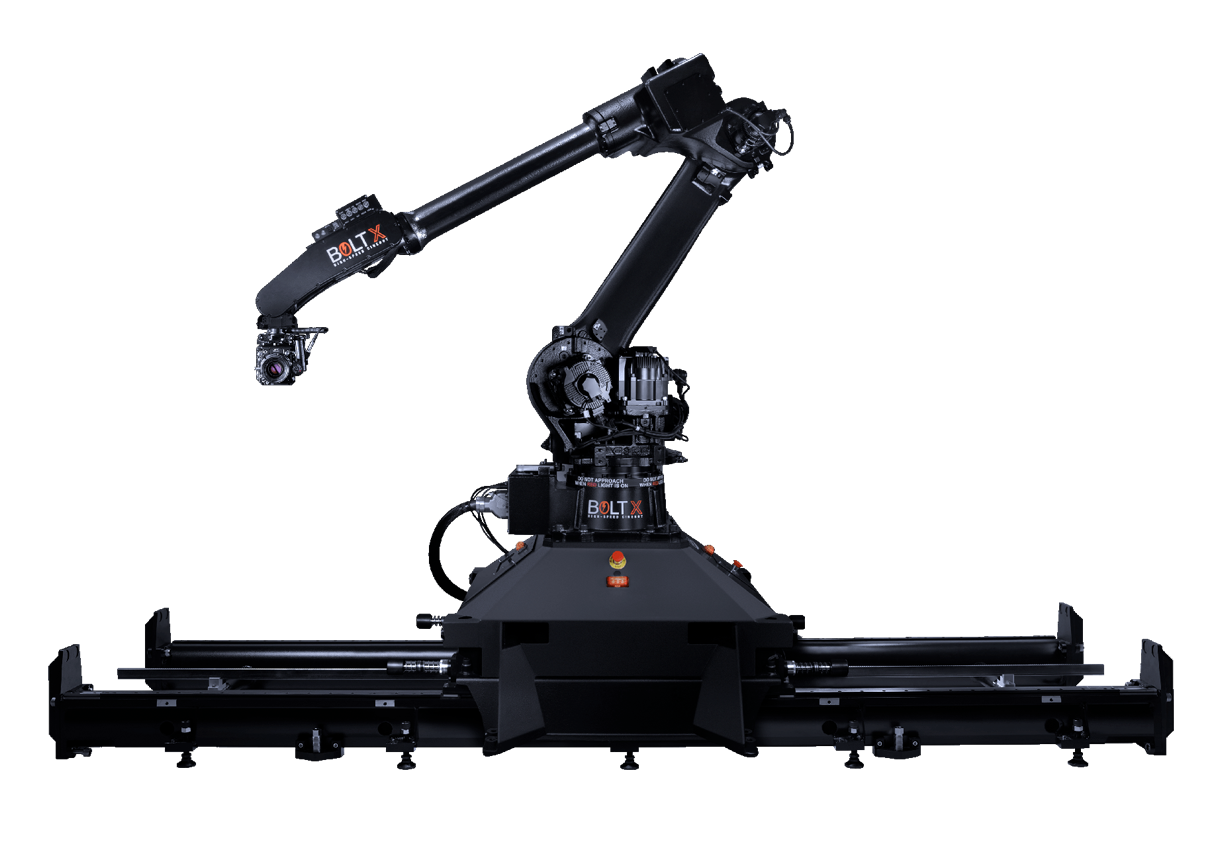

The Bolt X gives a much larger operating envelope giving operators a greater freedom for creativity. Extremely useful for shooting live action subjects, the Bolt X is perfect for music videos, commercials, film & TV.
Bolt X horizontal arm reach extends 3.2 metres from the rotate centre and has a vertical travel of nearly 5 metres, starting from its lowest position to the maximum height of 4.3 metres.
This incredible range of movement and flexibility will give directors and DOPs new opportunities to flex their creative muscles, capturing diverse and enhanced high-speed action.
| MAX HEIGHT (ON TRACK) | MAX REACH (FROM ROTATE CENTRE) |
|---|---|
| 4.3m / 14'1" | 3.2m / 10'5" |
| TRACK | ROTATE |
| Unlimited travel @ 4.2 m/s | +/- 180˚ range of travel @ 180˚/s |
| LIFT | ARM |
| + 135˚ to - 90˚ range of travel @ 180˚/s | + 206˚ to - 80˚ range of travel @ 180˚/s |
