The universal Single portable lighting system comes in a slender package but delivers ample light for challenging spaces such as set practicals or automobile interiors. Single Systems feature:
- 1-Lamp remote fixture w/ built-in barndoors
- Fixture includes Reflector, Louver, and removable Harness
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Mounts to stand, light enough to tape to wall
- Removable center mount
- Fixture or lamps w/ harness run up to 75 feet (24 meters) from ballast
- Record 6K, 5K, 4.5K, 4K, 3K, 2K, 1080P or 720P
- High output, flicker-free ballasts
- Universal input voltage from 100-240VAC can be used anywhere in the world
- Instant-on, dead quiet
- HO/Std switching
- Low amperage draw at 0.6A/120VAC, 0.3A/230VAC
- Same ballast runs 4ft and 2ft lamps
- UL listed, CE approved

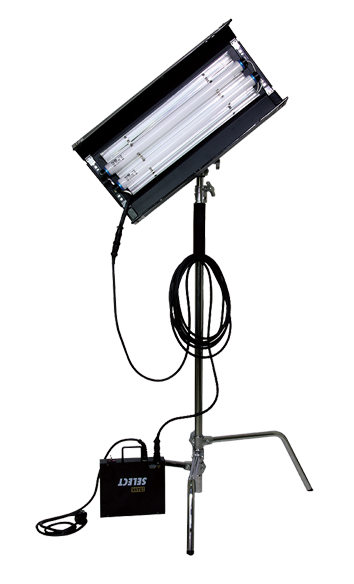

The double select system is equivalent to bouncing a 575 watt HMI off a white poly board. it consists of a two lamp fixtures operated by a remote ballast. The select ballast is flicker free at any camera speed or shutter angle with controls to power two lamps or one at high-output or standard-output settings. The same ballast will power your choice of 4ft, 2ft, or 5-inch fixtures. The double select system serves well as an edge light, or above the camera as an ‘obie’ light. When lighting close-ups of a face, the 4ft system provides a very flattering soft light that seemingly “wraps around" the face. The extended 6-inch barndoors and the louvers allow for a greater degree of light control. The double system is a multi-purpose, everyday light. By combining two doubles; you have the light output of a 4 bank. By powering onIy one lamp in the double fixture, the output equals a single select system. Like the 4 ban k and single systems; the double's wiring harness allows the lamps to be operated outside the fixture. This fixture frees up the lamps to be used for custom instalNations. To change the colour temperature, select the appropriate lamp.
The 2' 4Bank Fixture from Kino Flo is a 4-lamp fluorescent light that outputs the equivalent of a SOOW softlight while consuming a fraction of the traditional fixture's electrical draw. When used with a standard or DMX ballast (purchased separately) the light has 2 or 4 lamp switching to vary the power output as well as standard and High Output settings to avoid color shifting associated with dimming. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance.
| Lamps | 4 x F40/T12 Lamp Sockets |
|---|---|
| Mounting | Twist-off mount with 3/8" pin |
| Photometrics | 65 fc @ 4.0' (1.2 m) 17 fc @ 8.0' (2.4 m) 5.5 fc @ 14' (4.2 m) 456 lux @ 4.9' (1.5 m) 170 lux @ 8.2' (2.5 m) 69 lux @ 13.1' (4.0 m) |
The Double System is a softlight source that can be plugged into a wall socket on location. With
its narrow profile and size approximate the quality of light from bounced sources without losing
set space.
The first thing to note about the Double System is that it consists of four components: Double
Fixture (fig. I), Mounting PI Ballast (fig. 3) and Extension Cable (fig. 4). It was designed in
this manner to allow the greatest flexibility when working o where the gaffer and DP are constantly
being challenged to light unique locations and problem solve at a moment's notice

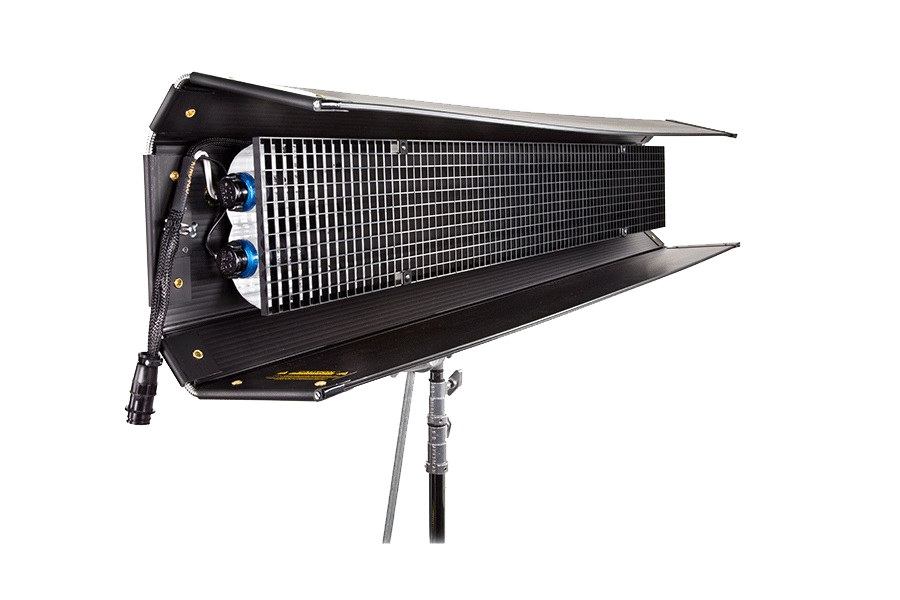

Great for key lighting and fill, the 4ft Double is one of the most versatile products in the Kino
Flo product range and was oi products developed by Kino Flo more than 25 years ago.
The popular Double portable lighting system has been redesigned with universal input voltage from 100VAC-240VAC. Th‹ profile of the fixture and lightweight design makes it perfect for both soft key and fill lighting in tight locations. Features
- 2-Lamp remote fixture w/ built-in barndoors
- Fixture includes Reflector, Louver, and removable Harness
- Same fixture takes daylight and tungsten lamps
- Mounts to stand, light enoug h to tape to wall
- Removable center mount
- Fixture or lamps w/ harness run up to 75 feet (24 meters) from ballast
- High output, flicker-free ballasts
- Universal input voltage from 100-240VAC can be used anywhere in the world
- Instant-on, dead quiet
- Individual lamp switching - no color shift
- HO/Std switching
- Low amperage draw at 1.3A/120VAC, 0.7A/230VAC
- Same ballast runs 4ft and 2ft lamps
- UL listed, CE approved
Kino Flo’s award winning 4ft 4Bank portable lighting system is reintroduced with a new design. With new universal voltage from 100VAC to 240VAC, the 4Bank can be used anywhere in the world. The 4Bank is brighter than a 1,000W softlight, yet draws only 2.6A (120VAC), 50% less than the previous model. New features include new graphics, new color coded connectors and new power switches. The lighter weight 4Bank ballast has the same classic features: individual light control, HO/Standard switching and the same high quality standards: flicker-free, instant-on, dead quiet operation. Color temperature doesn’t shift when light levels change. With its new and classic features, the popular 4Bank remains to be a favorite tool among lighting professionals in the studio or on location.
- 4-Lamp remote fixture w/ built-in barndoors
- Fixture includes removable Lamp Harness, Reflector and Louver
- Same fixture takes daylight and tungsten lamps
- Mounts to stand, light enough to be hand-held or taped to a wall
- Removable center mount
- High output, flicker-free ballasts
- Universal input voltage from 100-240VAC can be used anywhere in the world
- Instant-on, dead quiet
- Individual lamp switching – no color shift
- HO/Std switching
- Low amperage draw at 2.6A/120VAC
- Same ballast runs 4ft and 2ft lamps
- Operates at 1/3 the power of conventional tungsten softlights
- High color rendering (CRI 95) True Match® lamps in 3200K and 5500K
- UL listed, CE approved
The Celeb® LED 201 DMX produces a soft, even wraparound lighting quality (CRI 95) and produces color faithfully, beautifully on HD or film, in the studio or on location. The Celeb LED 201 measures 24” x 14” (61cm x 35.5cm) and is similar in profile and light output as the popular Diva-Lite 415.
The Celeb LED boasts technical innovations that make it an ideal professional imaging tool: a dial-in variable color temperature control, full-range dimming and programmable 2700K to 6500K presets. The Celeb LED's 100 Watts of soft, lustrous white light doesn't flicker or shift color temperature when dimmed. With the use of a Lumen Radio transmitter (sold separately), the Celeb LED 201 can be operated DMX wirelessly as an alternative to DMX cables.
The trim, lightweight fixture operates on universal AC power, 100VAC-240VAC, and needs only less than one amp to produce more lumens than a 750W tungsten soft light. The Celeb LED 201 can also be powered by 24VDC battery. The Celeb LED's cost savings from low energy and long lamp life continues Kino Flo's reputation as an environmentally friendly lighting company.
The Celeb LED 201 comes complete with 360 degree mounting, molded accessory holders, removable gel frame and focusing louver.
- Five Kelvin presets
- Dial-in color temperature control between 2700-6500K
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- Color-correct with high color rendering index (CRI 95)
- Universal Input 100VAC-240VAC or 24VDC
- Energy efficient, draws less than 1A, 120VAC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireles link (Lumen Radio)
- DMX Auto Terminate
- No color shift while dimming
- All-in-one metal alloy design with built-in electronics
- Fixture includes Gel Frame and 90° Honeycomb Louver
- Honeycomb louver also available in 60°
- Lightweight, slim profile
- Mounts to stand or can hang easily from a grid
- Accessory molded corners also used for four-point rope hang
Kino Flo’s new innovative Celeb LED 401 DMX is a soft, cool LED ideally suited for today’s growing demands for energy efficient, portable, yet color-correct LED lighting. The Celeb LED joins the Kino Flo family of Academy Award-winning lighting systems. The Celeb LED was developed using the latest technology to conform to Kino Flo’s highest standards – cool, color-correct, flicker-free and quiet operation, which is what sets the Celeb LED apart from all other LED’s.
As with all Kino Flos, the Celeb’s soft, lustrous color has been specially formulated to match the spectral distribution curves of HD film and video cameras. With a high color rendering index (CRI 95), the Celeb LED operates coolly and flicker-free, even while dimming, and maintains its True Match® color temperature without any color shift.
The all-in-one metal alloy fixture includes onboard and DMX dimming and runs universally at 100-240VAC or 24VDC. The push-button Kelvin presets can be fine-tuned to custom settings from 2700K to 6500K with a turn of a dial. Light levels do not change when selecting Kelvin settings. With the use of a Lumen Radio transmitter (sold separately), the Celeb LED 401 can be operated wirelessly as an alternative to DMX cables. The Celeb’s slim profile mounts onto a junior stand or can be hung from a grid with a junior pipe clamp.
- Five Kelvin presets
- Dial-in color temperature control between 2700-6500K
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- Color-correct with high color rendering index (CRI 95)
- Universal Input 100VAC-240VAC or 24VDC
- Energy efficient, draws 1.8A, 120VAC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- No color shift while dimming
- DMX wireless link (Lumen Radio)
- DMX Auto Terminate
- All-in-one metal alloy design with built-in electronics
- Fixture includes Gel Frame and 90° Honeycomb Louver
- Honeycomb louver also available in 60°
- Slim profile
- Mounts to stand or can hang easily from a grid
- Accessory molded corners also used for four-point rope hang
The Flathead 80 system was designed as a softlight source that can be plugged into the wall on location. With its narrow profile and size, the Flathead 80 can approximate the quality of light from bounced sources without losing set space.
The Flathead 80 system was designed to be compatible with the popular 4ft 4Bank components. In some situations more light was required and users were stacking 2 x 4ft 4Banks. Initial concept for the Flathead 80 was to make it out of plastic like the 4ft 4Bank, but because of its size, the final design called out for a metal wrapper.
Since many customers and rental houses already had 4ft 4Bank components in their stock, Kino Flo decided to use 2 x 4Bank ballasts instead of creating a Flathead 80 ballast. The advantage of this approach is that it increases rental utility, minimizes investment and allows for individual lamp control.
The Flathead 80 system consists of six components: Flathead 80 Fixture (fig 1), Mounting Plate (fig 2), Ballast x2 (fig 3) and Extension Cable x2 (fig 4). It was designed as a remote-style fixture to give the greatest rigging flexibility for production crews.
- 8-Lamp remote fixture
- Fixture includes Reflector, Louver, and Cardholders
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Mounts to junior stand or light enough to screw to a wall or ceiling
- Removable center mount
- Fixture runs up to 75 feet (24 meters) from ballast
- High output, flicker-free ballasts
- Universal input voltage from 100-240VAC can be used anywhere in the world
- Instant-on, dead quiet
- Individual lamp switching - no color shift
- HO/Std switching
- Auto terminate for DMX
- Using two 4Bank ballasts, low amperage draw at 5.2A/120VAC, 2.8A/230VAC
- Operates at 1/3 the power of conventional tungsten softlighs
- UL listed, CE approved
