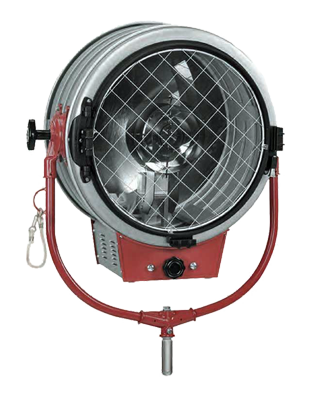

The Type 8331 5,000 Watt 24" Molebeam Projector is designed to produce a streaming ray of light in Tungsten (3200°K). This unit projects an 24" parallel beam of light that can be spotted and flooded from -5° to +15°. This fixture operates well for projecting a shaft of light through windows to achieve sharp shadow effects. Equipped with safety screen.
| HEAD | Type 8331, 5,000 watts. |
|---|---|
| RATING: | 120/240 volts, A.C./D.C., 41.7 amps max.—5,000 watts max. |
| SOCKET: | Positive Locking Bipost contacts. |
| SWITCH: | 60 Amp, 125/250 Volt Heavy Duty Double Pole, mounted in trough. |
| CABLE | Attached 3 ft. #6/1 Entertainment cable with #10/1 ground and MC257G male plug. |
| HEAD CONSTRUCTION | Light aluminum with vertical circular interlocking channels for ventilation and a louvered aluminum trough with aluminum end castings. |
| YOKE: | Tubular Aluminum and Aluminum castings with removable 11/8" dia. steel yoke pin. |
| SAFETY GLASS: | 24" dia. Flat clear pyrex. |
| REFLECTOR: | 243/4" dia. highly reflective parabolic glass mirror. |
| FINISH: | Clear Anodized Aluminum/Maroon Powder Coated Enamel. |
| SIZE: | 221/2" x 331/2" x 47". |
| HEAD WEIGHT: | 79 lbs (w/cable). |
| 450481A | Moledisc Diffuser Frame (29" dia.) |
|---|---|
| 450746 | Molering Diffuser Frame (29" dia.) |
| 450763S | Single Moledura Scrim (29" dia.) |
| 450763D | Double Moledura Scrim (29" dia.) |
| G140 | Scrim Bag |
| 5001652 | 60 Amp Cable Extension—25 ft. |
| 518 | Shutter |
The 10,000 watt Tungsten MoleBeam is designed to provide a brilliant beam of directional light with soft, unfocused, subtle edges. Its perfect balance of directionality and soft beam edges allow lighting professionals to create or "paint" with light without giving away their artificial source. Some great features include unlimited burn positions, adjustable beam from -5° to +15° and silent operation. Multiple units can be used together to imitate a single source from one distant origin. The unit features 3200° Kelvin (Quartz) output, an all glass 24" reflector, UV safety glass, safety screen, and the familiar ease-of-use you have come to expect from Mole Richardson.
| HEAD | Type 8331, 10,000 watts. |
|---|---|
| RATING: | 120/240 volts, A.C./D.C., 83.3 amps max.—10,000 watts max. |
| SOCKET: | Positive Locking Bipost contacts. |
| SWITCH: | 100 Amp, quick-make, quick-break. Mounted in trough. |
| CABLE | Attached 3 ft. #4/1 Entertainment cable with #6/1 ground and MC258G male plug. |
| HEAD CONSTRUCTION | Aluminum with vertical circular interlocking channels for ventilation. |
| YOKE: | Tubular Aluminum and Aluminum castings with removable 11/8" dia. steel yoke pin. |
| SAFETY GLASS: | 24" dia. Flat clear pyrex. |
| REFLECTOR: | 243/4" dia. highly reflective parabolic glass mirror. |
| FOCUSING:: | Knobs, in front and rear of fixture. |
| FINISH: | Clear Anodized Aluminum/Maroon Powder Coated Enamel. |
| SIZE: | 221/2" x 331/2" x 47". |
| HEAD WEIGHT: | 79 lbs |
| 450481A | Moledisc Diffuser Frame (29" dia.) |
|---|---|
| 450746 | Molering Diffuser Frame (29" dia.) |
| 450763S | Single Moledura Scrim (29" dia.) |
| 450763D | Double Moledura Scrim (29" dia.) |
| G140 | Scrim Bag |
| 5001652 | 100 Amp Cable Extension—25 ft. |
| 518 | Shutter |
The 20,000 watt Tungsten MoleBeam is designed to provide a brilliant beam of directional light with soft, unfocused, subtle edges. Its perfect balance of directionality and soft beam edges allow lighting professionals to create or "paint" with light without giving away their artificial source. Some great features include unlimited burn positions, adjustable beam from -5° to +15° and silent operation. Multiple units can be used together to imitate a single source from one distant origin. The unit features 3200° Kelvin (Quartz) output, an all glass 36" reflector, UV safety glass safety screen, and the familiar ease-of-use you have come to expect from Mole Richardson.
| HEAD | Type 8331, 20,000 watts. |
|---|---|
| RATING: | 220/240 volts, A.C./D.C., 96.2 amps max.—20,000 watts max. |
| SOCKET: | Positive Locking Bipost contacts. |
| SWITCH: | Quick-make, quick-break, mounted in trough. |
| CABLE | Attached 3 ft. #4/1 Entertainment cable with #6/1 ground and MC258G male plug. |
| HEAD CONSTRUCTION | Light aluminum with vertical circular interlocking channels for ventilation. |
| YOKE: | Tubular Aluminum and Aluminum castings with removable 11/8" dia. steel yoke pin. |
| SAFETY GLASS: | 36" dia. Flat clear Pyrex. |
| REFLECTOR: | 36" dia.parabolic glass mirror. |
| FOCUSING: | Rotating knob in rear of fixture. |
| FINISH: | Clear Anodized Aluminum/Maroon Powder Coated Enamel. |
| SIZE: | 33" x 43" x 431/2". |
| HEAD WEIGHT: | 125 lbs |
| 635187 | Extension Arms (Set of 3) |
|---|---|
| 34724 | Flat Diffuser Frame (Solid 4' x 4') |
| 500572 | Folding Crank-Up Stand |
