Covering sensor sizes up to 35mm 4-perf, the Optimo Anamorphic 44-440mm Zoom Lens (PL, Feet) features a 2x squeeze, and a 10x zoom ratio. This relatively lightweight, compact, long-range lens is one of several zoom options in the Optimo Anamorphic series, each producing the signature organic Angenieux look, and blending with other Angenieux glass. This zoom has integrated encoders that provide metadata using Cooke /i technology.
This PL mount lens can be quickly switched by a technician to an optional Panavision mount, and is compatible with both the 1.4x and 2x extenders, and the ASU servo control. Features include a close focus distance of 49", very low distortion throughout the focal length range, and rugged construction suitable for a wide temperature range.
The focus ring of the Optimo Anamorphic 44-440mm features 320° of rotation, providing room for over 40 precise witness marks. Marked in feet, the focus scale can be interchanged with marks in meters. An internal focus design means the lens length stays constant as the focus is changed, displaying no signs of breathing during focus pulls. The lens features a 136mm front outside diameter, threaded to accept an optional protective glass element. This zoom lens incorporates industry standard 0.8-MOD gears for interfacing with the optional ASU servo unit, zoom motors, follow focus units, or wireless F/I/Z systems.

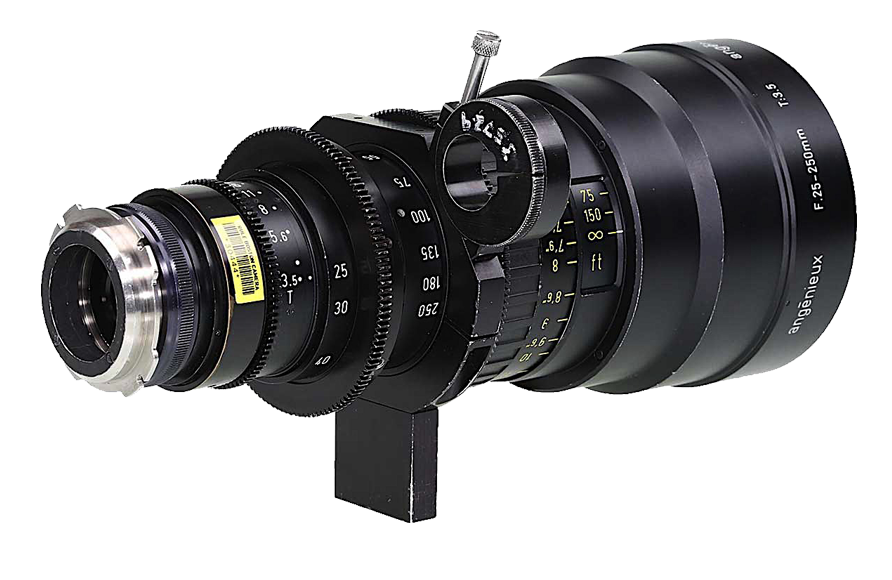

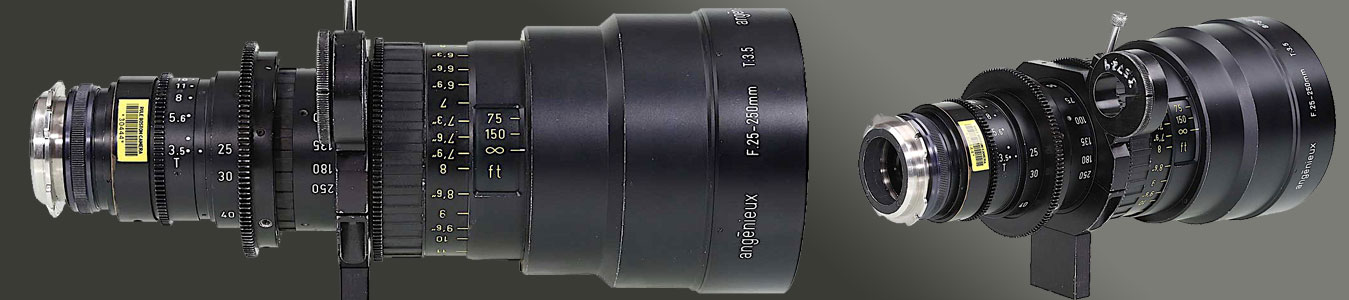

Zoom Ratio | 10X |
---|---|
Focal Length | 25 - 250 mm |
Aperture | f3.2 – T3.5 with no ramping |
Close Focus | 4 ft – 1.22 m |
Internal Focus | Yes |
Image Coverage | S35+: 31.4 mm diagonal |
Weight (Approx.) | 16 lbs – 7.3 kg |
Length | 377.4 mm |
Front Diameter | 136 mm |

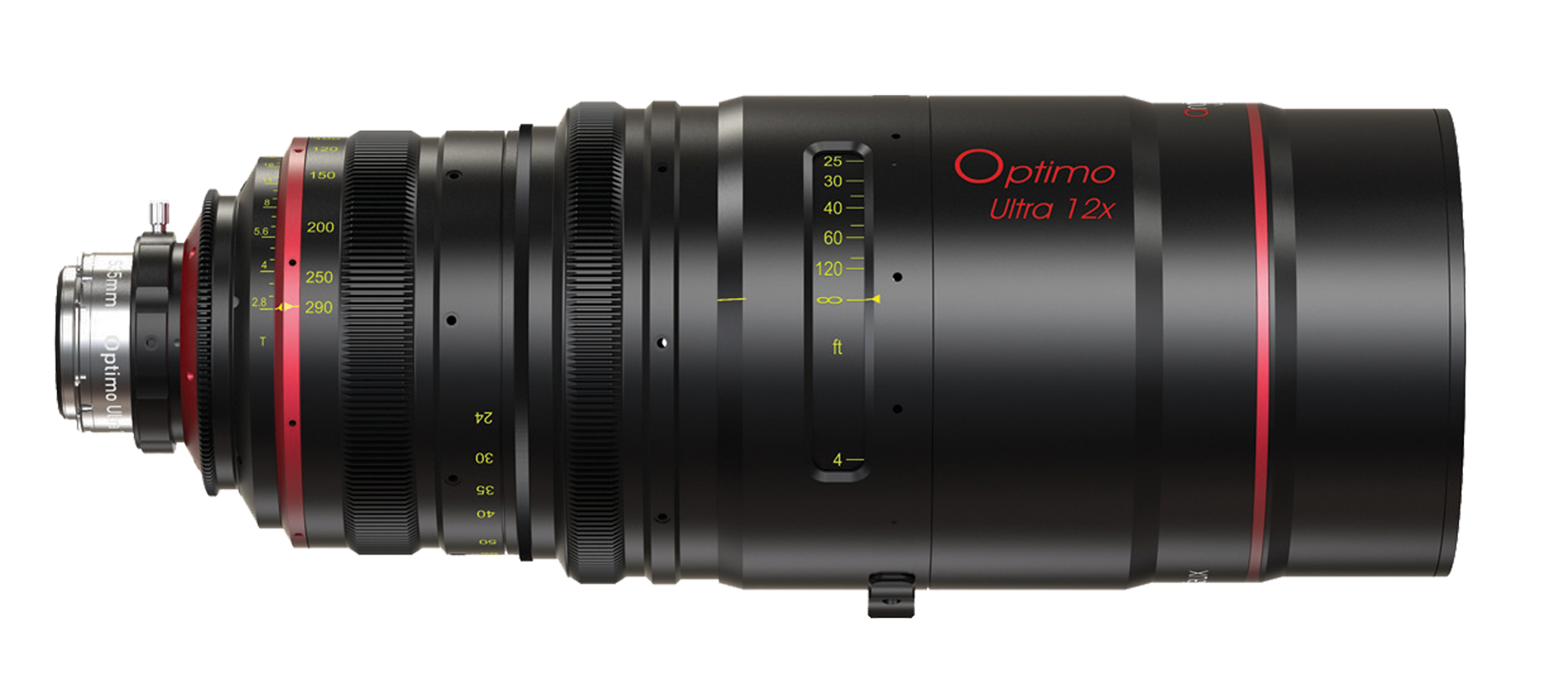

The successor to the 24-290mm, the Optimo Ultra is the new generation high end 12x zoom. With a brand new optical and mechanical design, the Optimo Ultra is the industry's new standard. Easily swap between three format coverage kits in just 10-15 minutes. The Optimo Ultra features superb image quality, low distortion and no ramping making it the perfect choice for just about any production.
Focal Length | 24-290 (S35), 26-320mm (U35), 36-435mm (FF/VV) |
---|---|
Max Aperture | T2.8 (S35), T3.1 (U35), T4.2 (FF/VV) |
Coverage | S35, U35, FF/VV |
Lens Mount | PL (LPL compatible) |
Min. Focus | 4' (S35), 4'1" (U35), 4'2" (FF/VV) |
Front Dia | 162mm |
Length | 18.6" (S35), 18.9" (U35), 20.6" (FF/VV) |
Weight | 27.7 lbs. (S35), 28.1 lbs. (U35), 28.1 lbs. (FF/VV) |
Name | ARRI/FUJINONAlura Zoom 18-80 | ARRI/FUJINONAlura Zoom 45-250 |
---|---|---|
Lens Mount (1) | PL | PL |
Focal Length Wide | 18 | 45 |
Focal Length Wide | 80 | 250 |

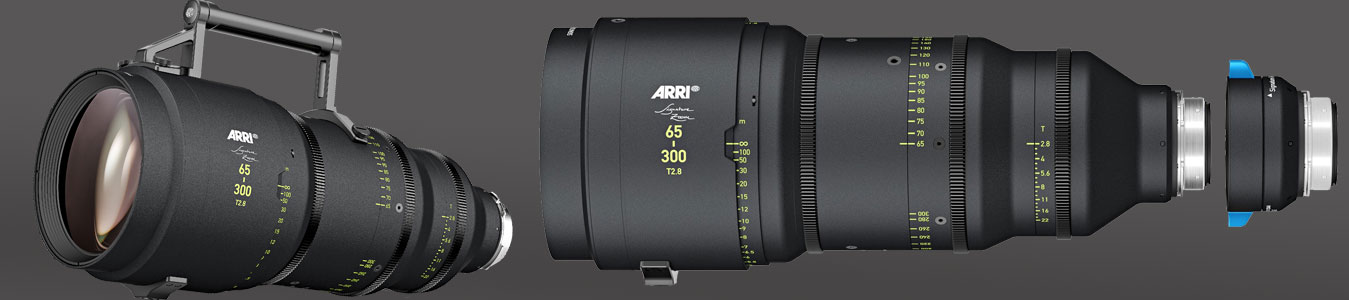

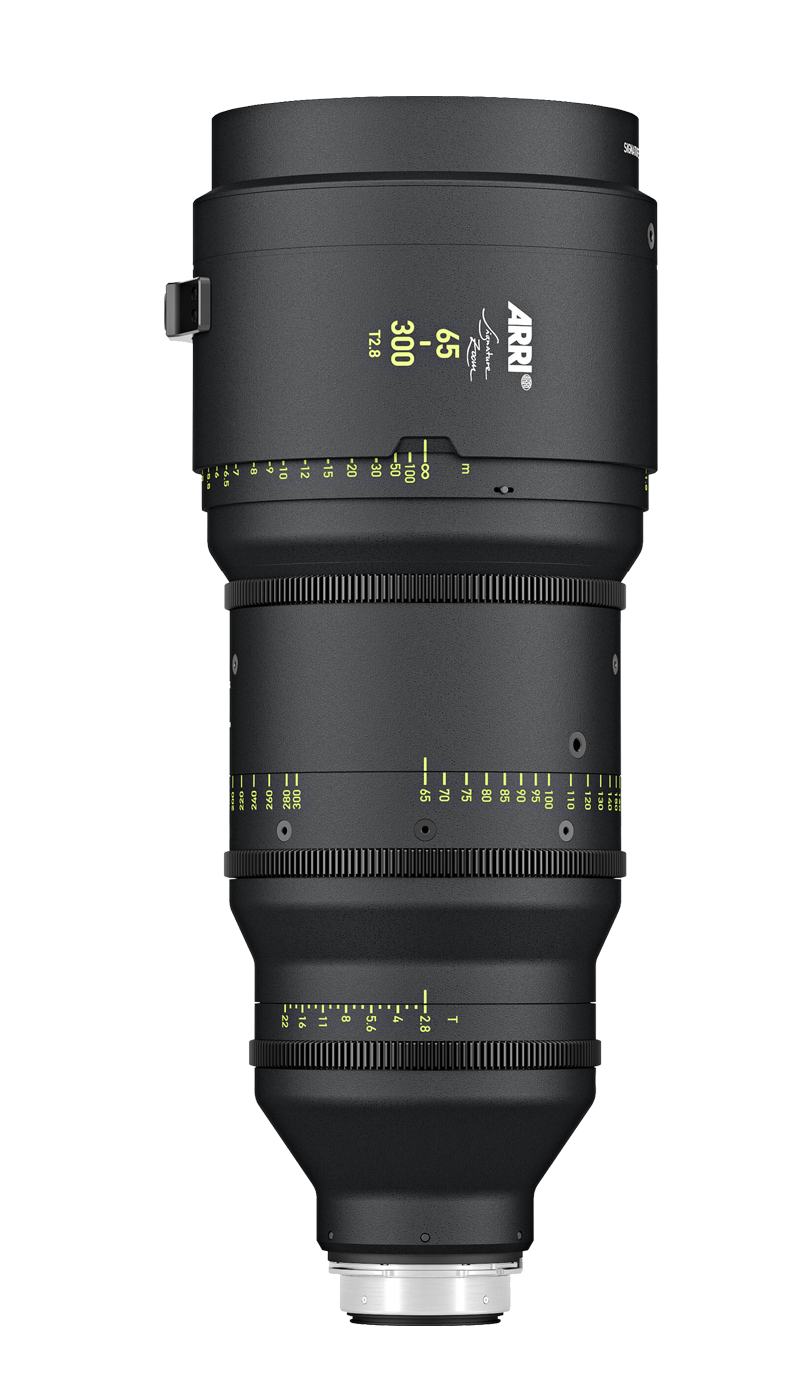

Name | ARRI Signature Zoom 16-32/T2.8 | ARRI Signature Zoom 24-75/T2.8 | ARRI Signature Zoom 45-135/T2.8 | ARRI Signature Zoom 65-300/T2.8 | ARRI Signature Zoom 65-300/T2.8+ 1.7xExtender |
---|---|---|---|---|---|
Focal length | 16 mm - 32 mm | 24 mm - 75 mm | 45 mm - 135 mm | 65 mm - 300 mm | 110.5 mm - 510mm |
Lens mount | LPL | LPL | LPL | LPL | LPL |
LDS | LDS-2 or Cooke/i | LDS-2 or Cooke/i | LDS-2 or Cooke/i | LDS-2 or Cooke/i |
High-performance and compact Two zoom lenses are all you need for professional cinematography.
Ready to take on ultra-high-resolution shoots in 6K-8K, SIGMA's cine lenses offer both outstanding optical performance and compactness. Now true cinematography is within reach, even on smaller projects or for special effects.
T2 brightness throughout the zoom range.Outstanding resolution ready for 6K-8K.These lenses combine top performance with superior compactness.
The High Speed Zoom Line offers a constant aperture of T2 throughout the zoom range, and their outstanding optical performance makes them fully ready for high-resolution shooting in 6K-8K. While offering the highest image quality in their class, these zoom lenses are compact and offer amazing value.
Focal Length | 18-35mm-50-100mm |
---|---|
Aperture | T2.0 to T 16-T2.0 to T 16 |
Number of Diaphragm Blades | 9 (Rounded diaphragm) 9 (Rounded diaphragm) |
Minimum Focusing Distance " | 0.28m / 11 0.95m / 3'2" |

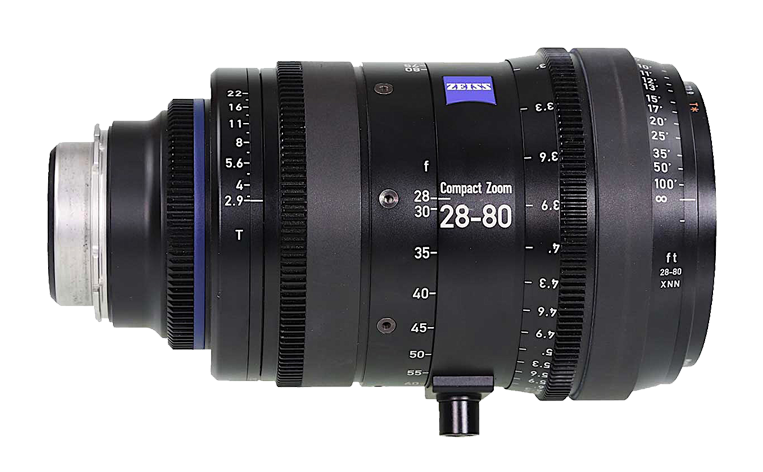

In this manual you learn how to change the mount of a ZEISS Cinema Zoom CZ.2 (abbreviation: ZEISS CZ.2) and how to match it to a digital camera. In order to explain the procedure, this manual uses a ZEISS CZ.2 28 – 80 which is scaled in feet with PL mount. Proceed in the same sequences to switch from or to any other mount that is available for the ZEISS CZ.2 (Canon1 EF, Nikon2 F, Sony3 E and MFT).

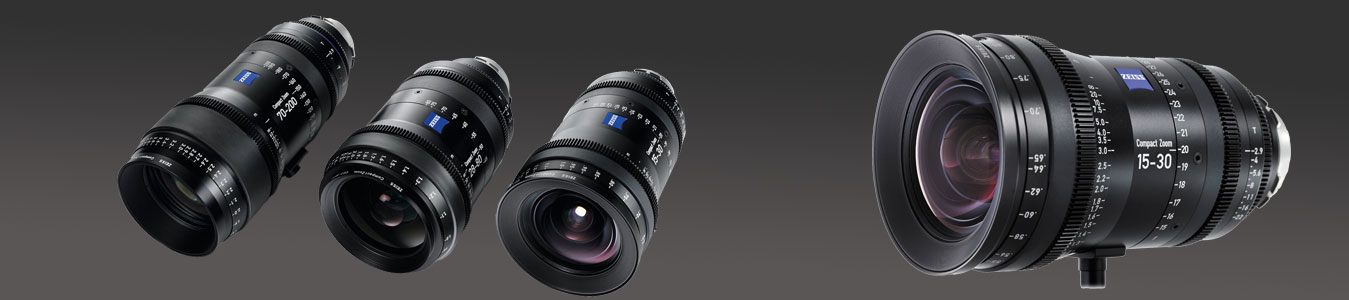

Cinema Zoom 15 – 30 mm | Cinema Zoom 28 – 80 mm | Cinema Zoom 70 – 200 mm | |
---|---|---|---|
Aperture range | T 2.9 to T 22 | T 2.9 to T 22 | T 2.9 to T 22 |
